Let's See Pics Of Your Twins

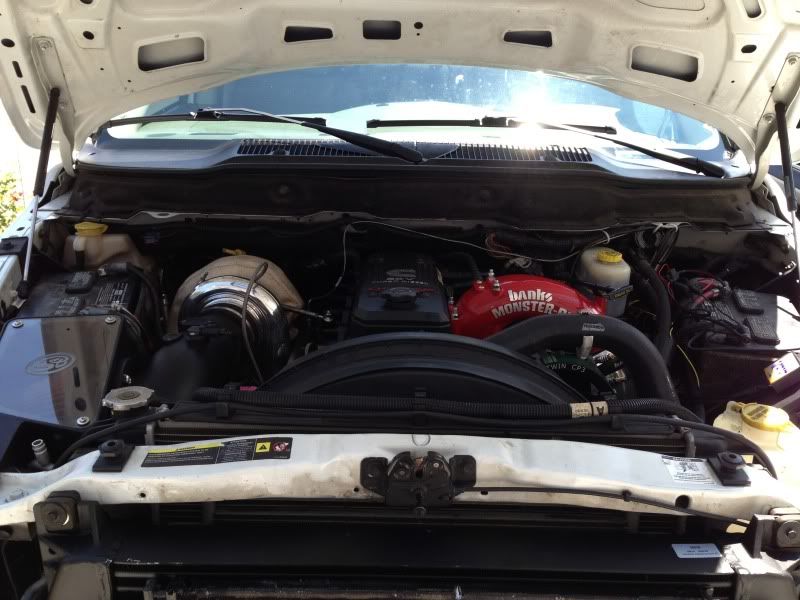

Not mine, but a set we built a while back. S472 and S510.

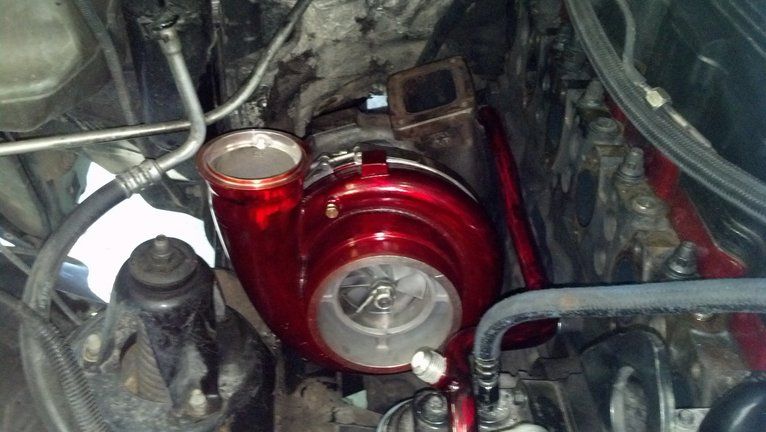

Another custom setup S363 and S480. Can't really see the manifold charger, but it is rearward facing like the other post.

GT3788R over a 91 mm GT5533R

Here's my Bd super b over box unit BW s475 using a mixmatch of crazy carls parts & a 4" cold pipe I got off the forum here.





There were some fitment issues I ran into though...
Carls hot pipe was too short & didn't reach the s475 because of where carls primary turbo mount made it sit.

That's with a .5" spacer inbetween as well to show how far off these are.


Here's my solution




You'll also notice in the first couple pics that I had to cut the cold pipe going from primary to secondary to make it fit correctly. It's holding pretty strong so far.

Now... Here's an issue I ran into today.


On my UDC tow tune (what I blew it on) I make 26psi boost out of the s475 & 60+psi boost overall.
I think it ripped due to the angle my stock intercooler pipe is at. It was putting the silicone coupler in a bit of a bind.

Any suggestions on making my kit better are much appreciated. :thumbsup:

Here's my set:



They are a 62/S475 setup, but the 75 is mounted up top.

57 over a 471

Heres the start, MPI piping, HTT 62/65/13 over S480. should be all back together in a week or two.

63/s480







64/s480





66/89 Triple Ceramic Ball Bearing Turbos



Stocker/s475

Something different.

Ported head with oversize valves....Have several more pics, but I keep getting upload errors. I don't know what's going on with it. :confused013:
