Ideas to consider when soundproofing your truck.

61516 Views 34 Replies 21 Participants Last post by  scout2000,
country_hick
Look on page 2 for my soundproofing effort and results.

If anyone has further useful information please post it here. Please Do not bring arguments about which brand is best based on only you having used it once or twice. Only results showing db reductions, STC, or similar measured reductions of sound are wanted here.

Reason for this thread

I looked at soundproofing my truck because of the engine noise. I turned the radio off on almost a 2,000 mile trip because it was to loud in the cab for me to enjoy the music while driving down the road.

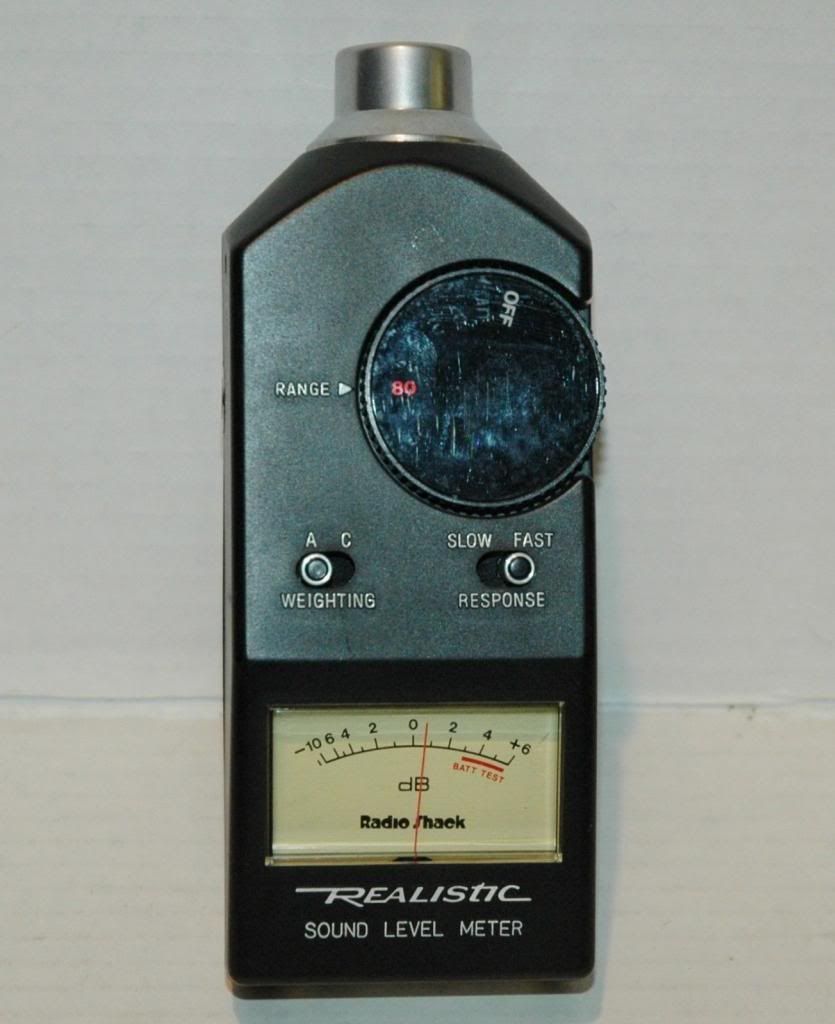

At idle my sound meter says I have 85 db sitting still. I am really only hearing the knock of the engine itself. Most often people spend a lot of time and money putting on the various sound deadeners over the entire inside of their trucks. After tearing out the interior they put the aluminum foil backed sticky stuff over almost every inch of the interior. Is that however the best approach?

Most of the information I found regarding soundproofing said brand A is better, no brand B is, then brand C is mentioned as being best... Then the arguments continue with nothing to back up any claims made. I still have seen very little to show that most automotive sound proofing material actually stops any sound. I keep hoping to find the scientific approach. This material has a STC of (insert number here) at 125 hz (diesels have low frequency sound) so I could compare and determine which material should work best for my use.

What frequencies do we need to be concerned with to quiet a diesel engine?
Low Frequency Noise Concerns
" The audible frequency range varies from about 20 Hz (hertz, or cycles per second) to about 20,000 Hz. An example of a low-frequency source is a large idling diesel engine, which can produce large amounts of low-frequency sound in the range from 20 Hz to 150 Hz. Low-frequency sounds (long wavelengths) tend to travel easily over long distances. Therefore, it is most efficient to control low-frequency noise at the source, although it may be difficult to obtain a satisfactory result."

This is why we have so much trouble quieting a diesel engine. It produces low frequency sounds. Because of their nature they are hard to block out. The same situations exists when you hear a car playing music way to loud. 1/2 mile away you only hear the bass because the higher frequency sounds naturally dissipate over that distance.

You will find that sound proofing materials get tested over several different frequencies. Some materials work best at those frequencies that will not affect the noise of our diesels enough to notice.

Why are the newer diesels quieter?

We have learned that the new diesels inject fuel 3 distinct times instead of once like our older trucks do. Those multiple injections produce lower emissions and less noise. There are other improvements we can add to our trucks to reduce the noise levels our trucks produce also.
<from Noise reduction effort update - Page 3 >

"The really quiet Mercedes diesels are the ones that intrigue me. I used to work for DaimlerChrylser before the 'Diamler Debacle' ended my career with them. I had the opportunity to speak with a couple of their engineers and ask how they made their diesel engines so quiet.

This is what I was told, I haven't been able to verify it all, but it makes sense:

Double wall valve covers, double wall exhaust manifold shields, and double wall exhaust pipes are used to a great extent. The injectors, injector lines, and injection pump is either buried or shielded wherever possible."

Look under the hood of the new trucks. There is a lot of soundproofing under the hoods today. You will even see soundproofing on the inner fenders. That has to be there to stop noise from getting into the cab instead of helping people outside of the truck who think it is to loud. If you can put enough soundproofing on, under, and around the engine and engine components including the turbo, injection pump, and exhaust pipe that will greatly reduce the noise coming into the cab from the engine.

Areas of our trucks producing or transmitting sound
A lot of sound comes through the windshield and other windows. Except for closing the windows and making sure the seals are intact there is nothing we can do to stop sound from these sources.
The back wall has nothing to block sound. If you have loud exhaust soundproofing the back wall is a good plan.
The floor will transmit sound especially from the exhaust sitting underneath it.
The firewall transmits engine sound quite nicely.
A lot of noise comes out of the valve cover.
The injection pump is just plain noisy.
A lot of sound comes through the doors.
The roof can be a culprit largely due to vibration when you have drone coming from stacks.
Tires can create a lot of noise depending on the tread pattern.
Wind and other road noise. This can be a result of worn out seals or mounts.
The exhaust can make a lot of noise especially when modified.
The oil pan on the cummins 5.9 in our trucks resonates like an empty 55 gallon oil drum.

One person used a DB meter and said the oil pan is the noisiest place on the engine. It is about 110 decibels at one foot!! Years ago the government Dept Of Labor said 1/2 hour a day was all that was allowed for exposure to that level of sound.

Exhaust pipe modification for quieter running From Lsfarms
"What I did for my downpipe is to take a length of 4" straight pipe and slit it lengthwise and open it up like a big 'C' then slip it over the straight sections of the down pipe, then tack-weld it in place such that there was an 1/8" gap between the inner pipe and the new outer 'skin'. Then I wrapped the whole thing with the fiberglass header-wrap. It seemed to help."

There are some heavy duty trucks that come factory with double walled exhaust pipe. Maybe this is a good sound solution most of us miss.

Drone
One person had the dreaded drone with one exhaust setup and eliminated it by changed the preload and hanger locations to stop the pipe from resonating and droning.

Clamp a piece of angle iron onto the straight pipe to change its weight and resonance to reduce and eliminate drone. Putting different lengths and weights may be required to find the sweet spot.

(from) TheDieselStop.Com Forums: Can I dampen my drone? Please!
"Do a search on "flex kits" and you may find your answer. My truck had a significant drone/resonance starting in the 1700 RPM range. After reading a couple of positive posts about installing a section of flexible exhaust I obtained a pre-made kit that consists of a 6" section of flex exhaust complete with the couplers and U bolts. I installed the kit last night and I am very pleased with the results. I cannot hear/feel the drone." (and) "The flex pipe eliminates about one third of the normal noise this truck makes" That makes sense as putting in a flexible pipe would change the resonance frequency of the exhaust system.

Another person glued lead sheet using liquid nails panel adhesive onto their roof. This was done because of drone using stacks. That helped the drone a lot. The roof can be a cause for excess noise in at least some cases.

Stock trucks are around 92-98 Db under load at 70 mph. (88-90db is where most say hearing damage starts) and this is more than enough to cause hearing damage over time.

Those folks who have drone at 2000-2200 rpm are in the 96-98 Db range. If you have to turn your radio way up to hear it on the highway, then turn the radio way down at a stop light the truck needs some sound proofing.

(Tire and road noise)
Obviously this has 2 solutions.
1. Put on quieter tires.
2. Soundproof the cab.
3. Use earplugs while driving. This is not really a proper solution but will help to prevent hearing damage.

The tires chosen can make a vehicle a lot quieter or noisier.

Product types (not brand names) to consider using

There are 3 ways to reduce sound through sound proofing

1 absorb = foams
2 change resonance = any panel stiffener (my imperfect terminology)
3 block sound = lead or mass loaded vinyl (transfers sound wave into heat)


When it comes to sound deadening there are typically three types of products used, mass loaders, FLDs, and CLDs.

(from here) peel and seal as sound deadning - Page 3 - Product Reviews - Post a review on a product you have first hand, personal experience with. - SMD Forum

Mass loaders are exactly what they sound like, they add mass to lower the resonance frequency of the panel. Asphalt based products typically fall into this category because they lack the viscoelastic properties that the butyl products do.

Mass loading was a popular technique in years past, but mass loading is EXTREMELY ineffective. Why? You need to apply approximately four times the weight of the panel to drop the panels resonance just one octave. I don't know about you, but I don't want 100 pound doors just to listen to my music clearly.

The other two types of products are CLDs (constrained layer dampers) and FLDs (free-layer dampers).

CLDs include Dynamat, Damplifier, Audio Wrap, SDS Tiles, etc.
Simply put, CLDs convert the vibrational energy into low level negligible heat. The reason P&S ISN'T an effective or efficient CLD is the fact it doesn't have a thick enough constraining layer (foil) to do any good.

FLDs include products like Spectrum, LizardSkin, Cascade VB-1X, etc. There are FLDs that are not liquid, but these are the most common ones in our field.
The way FLDs work is that vibrational energy is dissipated as a result of extension and compression of the damping material, vs. a cld where the energy is lost through shear deformation of the material.

Typically speaking CLDs have the upper hand over FLDs because of their ability to maintain a higher loss factor across a wider range of frequencies, temperatures, and thicknesses of the substrate. Basically they are more efficient at controlling vibrations. This is especially true when applications require a light weight solution. For instance on a substrate of say 1/8", a cld mat of only 1/16" may be required to control the vibrations. The FLD on the other hand may require three or four times the thickness, so 3/16 to 1/4", to achieve the same loss factor.

P&S simply lacks the properties that would make in an effective vibration control product. It's not heavy enough to make a difference (unless you slap on 50+ pounds of the stuff). It doesn't have a thick enough constraining layer to withstand the shear strain of panel flex. It has a poor adhesive (typically consisting of asphalt, bitumen, petroleum distillates, and/or low grade rubber).

I've said it once and I'll say it again, DO NOT USE PEEL AND SEAL!

(from here) TheSamba.com :: View topic - Sound deadening comparison video: Read this thread. It has a lot of useful information beyond what is quoted below.

"There are three categories of sound deadening/vibration control products out there, and unfortunately most people don't know the difference.

First you have mass loaders. This is old technology and is fairly ineffective at reducing vibrational energy and resonance.

These products are typically constructed from asphalt or asphalt and rubberized compounds and weigh a significant amount.

They work by adding mass to the panel to lower the panels resonance frequency. Only issue is that you have to quadruple the weight of the panel to drop one octave. A skin of a door weighing three pounds would need nine pounds of material added to it to see a reduction of only one octave. So by the time you achieve a noticeable reduction in sound, you would have 70-80 pound doors.

Then you have CLD (constrained layer dampers). These products are lighter weight and sport a butyl based adhesive, no asphalt. They should have a fairly thick constraint layer (typically an aluminum one) as the correlation between the thickness of the aluminum layer and the effectiveness of the product go hand in hand. These products work by converting the vibrational energy into low level negligible heat.

And finally you have FLDs (free-layer dampers), or extensional dampers. These would include most liquid vibration products and a few self sticking mat products. The way they work is that vibrational energy is dissipated as a result of extension and compression of the damping material, vs. a cld where the energy is lost through shear deformation of the material.

Typically speaking CLDs have the upper hand over FLDs because of their ability to maintain a higher loss factor across a wider range of frequencies, temperatures, and thicknesses of the substrate. Basically they are more efficient at controlling vibrations. This is especially true when applications require a light weight solution. For instance on a substrate of say 1/8", a cld mat of only 1/16" may be required to control the vibrations. The FLD on the other hand may require three or four times the thickness, so 3/16 to 1/4", to achieve the same loss factor.

Once a panel is sufficiently 'dead' by using a CLD or FLD product, other means of blocking and absorbing sounds are needed.

CCF (closed cell foam) rarely, if ever, adds much of anything to providing a quieter ride. It's best used as a decoupler to 'float' a MLV layer above the surface or as a gasketing material to prevent rattles and squeaks. So anyone who suggests you use CCF to increase your sound deadening results is just trying to get more $$$ from you."

Peel and stick dampers are designed to control and reduce vibrations, not block sound. These products are just too thin and lightweight to block sound.

MLV (and thin lead) on the other is designed to block sound because of it's thickness and mass. Average noise loss when using a 1 pound per square foot MLV is around 25 dBs (across a wide range of frequencies). So the addition of a MLV over a vibration mat would just further decrease the noise level inside the vehicle, creating a much more pleasant listening environment. And remember, MLV has been used in the building industry for years as a barrier without a foam decoupler. Sandwiched between the 2x4s and sheetrock MLV creates an amazing sound barrier between rooms, great for isolating media/theater rooms and even apartments.

As stated several times in the industry, 25% coverage is pretty much all that is needed to sufficiently control vibrations. Upping that to 50% coverage may only increase the results a decibel or two, probably not enough for most anyone to notice.

How to apply sound deadening products for best results

Read this thread. It appears to cover almost everything you wish to know about applying soundproofing. Sound Deadening 101 - Diesel Place : Chevrolet and GMC Diesel Truck Forums

Firewall and sound deadening material - Page 2 - Ford Powerstroke Diesel Forum
" I am an acoustical engineer (certified) B.S.E.E. San Diego State, and MECP (Mobile electronics certification Program) Master installation technician. And many of you have it all wrong?!?! Dyna mat and such (asphalt base dampening materials) are not for blocking sound from entering the cab although they will "if there is 100% coverage" it is too cost prohibitive considering the much better and much less costly alternatives! the dyno-mat and such was designed to be used as a material to stop the "RINGING AFFECT" of the metal sheet itself (Known as resonant frequency dampening) and should be used in center of flatter areas at or larger than a square ft or so in patches of around 4" ( Must be applied to clean dry surface and heated to get good adhesion) Test application, example thump the area of sheet metal firewall etc w/finger nail and you will hear a tink then again after application and you will hear a thud!!! patches should be placed evenly on inside and motor side of firewall to cover and eliminate higher pitched "Noise" then a shredded treated automotive insulation should be used to dampen lower frequencies usually in 1/2 in thick (looks like a carpet pad made of shredded multiple colored string "available usually at HOME DEPOT 5 ft wide and by the linear ft! C H E A P ! " attach pad w/spray glue "3M heavy duty or equiv." use this inside cab only as it will absorb and retain moisture as high and as full of coverage as you can on firewall and I also recommend another layer under the whole cab carpet "If you have a floor shift insulate with this here too as well as possible this treatment will make your truck sound like a lexus on hwy!!!!!!! OK not, but you should be able to reduce internal noise w/windows closed by at least 10 - 25 decibels = MAJOR IMPROVEMENT!!! "

Is there a big difference from dynomat to something like peel n' seal? - Page 3 - Car Audio Classifieds
there are a few tutorials out there for proper placement of sound deadening but it's really not all that necessary if you follow two simple rules.
1. Only 25% of a panel needs to be treated. So a door that measures 6 sq. ft. should theoretically need no more than 1.5 sq. ft. of actual sound deadener (not Peel & Seal).
2. Placement of the material should be in the center most of the panel. No need to treat reinforced or welded areas, just the flattest areas of panels need it. Now why only 25% coverage you may ask? That tends to be the best bang for your buck in terms of achieving great results.

For instance, 50% panel coverage will typically increase the sound lose 2-3 decibels over 25% coverage. And 100% coverage will net another 2-3 decibels over 50% coverage. So the overall sound loss difference between 25% coverage and 100% coverage is typically 4-6 decibels. Quite often it's less than that.

Also when you just go all out and go 100% coverage, you (the typical person) tend to cover up and treat areas that do not need it, thus wasting product, time, and most importantly... money.

(That means there is some benefit to complete coverage but may not be worth spending that much more money.)

Solutions

Once I read that someone put something over the engine oil pan and valve covers with the result of greatly reduced the engine noise it made sense to me. I talked to a diesel injection pump rebuilder. I was told just the p-7100 injection pump alone sounds like a diesel truck running when it is being tested on the bench. To me that means put sound insulation around the injection pump also. If the injection pump is so loud other parts of the engine could also be noisy and need quieting down.

This is one website showing a product they sell that they claim kills off a lot of engine noise. It is a very expensive approach. I am sure something similar could be made at home.
DodgeRam

Here is a report by a person who bought and installed that kit.
Installed ATP Wap Noise reduction kit - Dodge Diesel - Diesel Truck Resource Forums
"Tim used a db meter to check the sound, with the kit intalled he said it read 59db at idle." Although I am not sure where the db meter was placed that is a huge reduction in sound from what I have now at 85db in the cab.

These 2 threads are long. Look at the sound reduction from making a lead liner around the oil pan. Also, notice that the first pan cover fell off while driving down the interstate. A better mounting system was needed and used the second time.

Noise reduction effort update (and)
Noise Reduction
Pay attention to Lsfarm's replies.
"I got 2 sheets of lead put in and the cab is back in order.
The sound test came in at +- 2-1/2 db less than before on the low end and hardly any change at the top end of the frequency scale. The tester said that is a 75% drop in noise and according to him most of the noise drop is in the lower levels area."

"I covered the oil pan, and changed the sound of a screwdriver tapping on the side of the pan from a "ting, ting" sound to a "thunk, thunk" sound.

The unprotected pan radiated sound at 102dB!! With the layer of lead, it radiated at 92-93dB. then I put my pan blanket back on and the pan now reads 90dB. All these readings in my shop on a concrete floor.

Wheelwell readings went from 96-98 db down to 87-89dB."

"Open your hood, and look between the fender and the hood hinge down inside just ahead of the door hinges. There is a thin 1/4" foam 'seal' just ahead of the door hinges. I added a layer of the 'superfoam' from GSI over the top of the factory piece. There is a lot of noise coming into the cab from this area."

"I had chimed in earlier when I had covered the firewall and cowl area. At that point, I had a baseline noise reading of 84 to 86 dbA on the center console between seats. The firewall work brought noise down to 81 or so at my baseline freeway speed of 82 mph. I completed seat removal and followed Greg's experience and covered all the areas outlined in his threads. The results are too amazing to have not done this a long time ago. I now have readings of 74 to 75 dbA which is more than 10 points lower than at the start. My main culprit was reflected engine and road noise. I now hear the engine sound as it should be but no overwhelming other noises. The truck is now much more pleasant to drive and I'm sure will result in less fatigue on the long hauls."

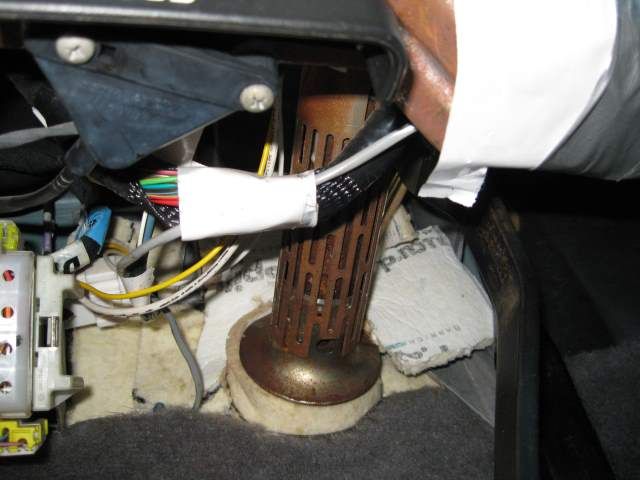

"I found the area around the steering column to be a big transmitter of noise. There is an aluminum casting supporting the steering column on the inside of the cab, and bare metal on the engine side of the casting, so there is nothing insulating this area so it picks up and radiates all the noise from the engine right into your lap.

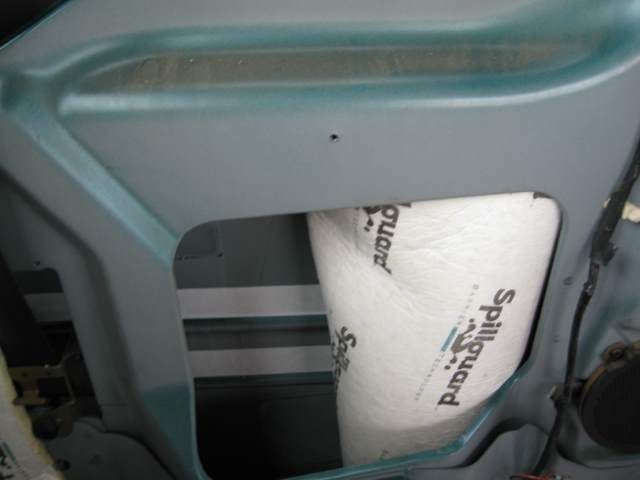

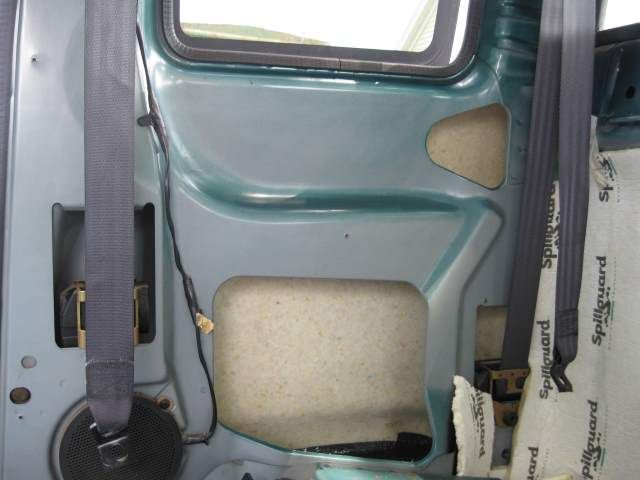

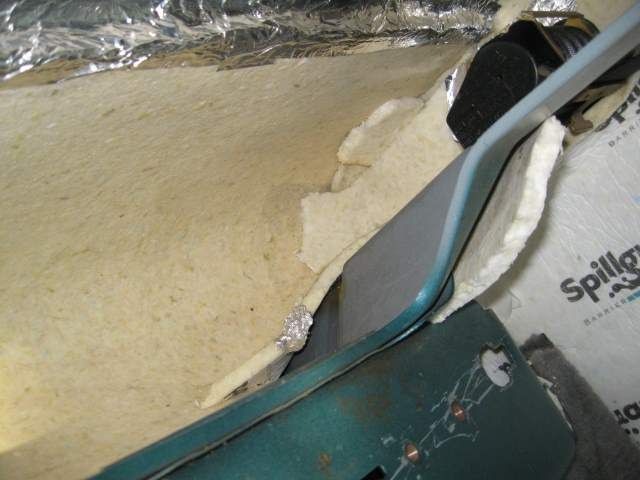

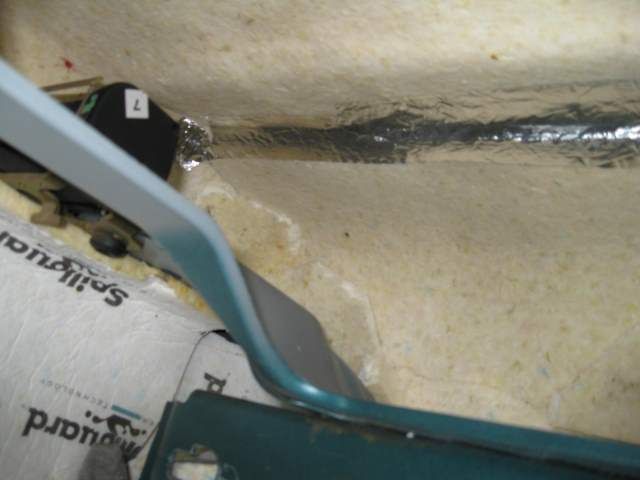

I just cut pieces of foam to fit around the braces and brackets, cut slots in the foam to go around wiring. A bit of trim adhesive will hold the foam in place.

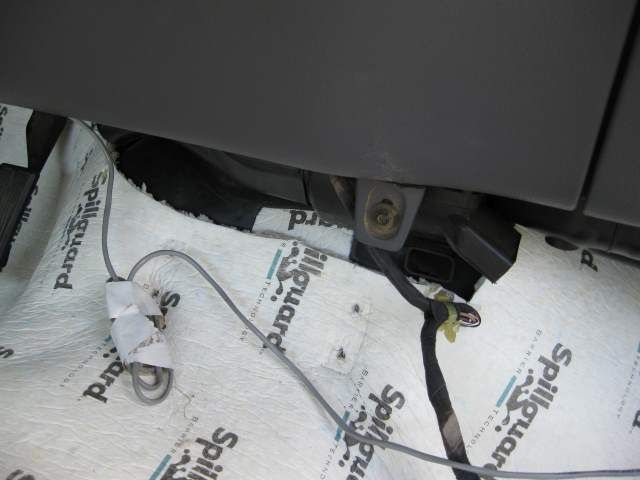

Use some foam around the floor shift if you have one. The floor of the cab radiates a lot of road and exhaust pipe noise.

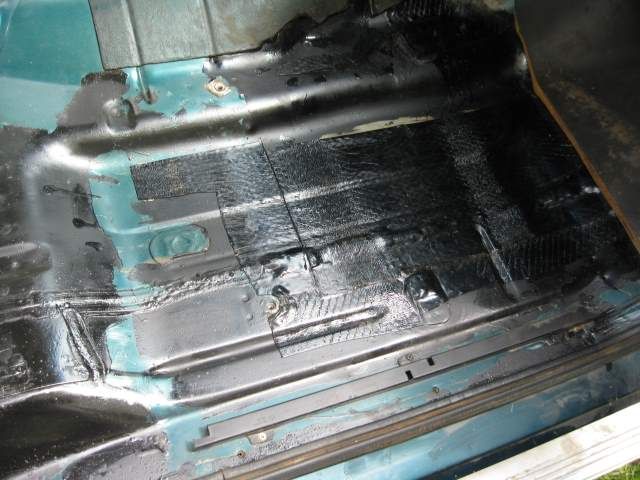

Some panel deadener on the floor was effective in my truck"

One person laid some lead sheet across the entire firewall and across the top piece that the top of the dash screws into. Doing the firewall made a big difference even with the rest of the truck already done.

If after putting some sound barriers over the oil pan, valve covers, and injection pump there is still more noise than you want I would put soundproofing material on both sides of the firewall and on the inner fenders. Look at your under hood firewall insulation. Some later trucks have a panel that comes all the way up to the hood. Also, later trucks had an insulator that more or less covers the bell housing and transmission. Go to a dealership. Look under the hood of the new trucks. There is a lot of soundproofing under the hoods today. Add the same kind of sound proofing to an old truck and you should get some sound reduction.

It may be true that soundproofing the cab is mostly a waste of time for most who do not have drone. Maybe soundproofing the engine is where the effort and money should be concentrated. After all, most of us are not looking at a super expensive sound system trying to eliminate panel rattle. We are not trying to kill off most of the road and wind noise. We are trying to silence the mighty cummins engine noise for a more comfortable ride.

http://powerstrokenation.com/forums/showthread.php?t=62831
The noise reduction measurement of Lizard Skin applied to valve covers looks like a 1-2 dB difference.

A comparison video
Here is a long video showing several different brands of soundproofing subjected to heat. If whatever you buy slides down and then off the panel it is not what you want in your vehicles.
https://www.youtube.com/watch?v=XWBzhEUG-LI
See less See more
Reply
Save
Like
  • Like
Reactions: 4
1 - 20 of 35 Posts
country_hick
Noise invades an automobile passenger cabin through one of two paths (from QuietRide Solutions - Auto Acoustics 101

"The physics of sound and vibration inside a vehicle isn’t that hard to understand. The two main components of cab noise are airborne, noise or vehicle-structure noise.

Airborne noise is noise from wheel vibrations on the road surface, wind noise, engine noise, transmission noise or exhaust system noise that makes its way through panel joints in the passenger cabin to the driver’s ears. Sealing any gaps, and installing or adding another layer insulation, is much like adding a double pane window to your home, it’s quieter.

Structure borne noise is produce by direct vibration of an unsupported, thin metal panel due to engine, transmission, or wheel movement. Both types of noise can be lessened with aftermarket sound-dampening materials."

What sound proofing will not do
"Before any acoustic treatment can have a major impact on the passenger environment, the vehicle’s body panels must be aligned and sealed and suspension mechanics must be in tip-top-shape. A noise leak is a hole (or gap between body panels) which offers little or no resistance to the flow of air-borne noise from entering the passenger cabin. Air gaps can be found in such places as:

Excessive holes in the body structure.
Poor or incomplete welds where body and floor panels come together.
Inadequate sealing of metal joints such as mechanical access panels.
Misalignment of doors, vent panels, the hood and trunk.
Poor fitting grommets and boots for bringing cables, pedals, steering column and shift levers into the vehicle’s interior.
Inadequate sealing of weather strips around doors, windows and the hood and truck."

Just remove the shifter boot to see how much louder any stickshift gets. Then try adding some foam inside the boot. It may even get quieter. The same principle applies to all gaps allowing extra noise into the cab. An even easier method to show how easy noise can come though an opening is to open the door with that cummins running. That will bring more noise into the cab.

Using lead for soundproofing
24 pages in this free download show how to use lead for sound control. Read this even if you will use other materials. It shows a lot about sound transmission.
www.maycoindustries.com/pdf_files/NoiseControl.pdf
Lead blocks sound 2 ways. Leads inherent limpness clips the bottom from low frequency noises. That is the most important one for diesel owners. Read the file to see what the other way is.

Avoid rigid fastening of lead to stiffer panels (like the back wall) to maximize leads limpness. Use visco-elastic adhesives when bonding lead. 2 single sheets of lead separated are more effective for soundproofing than one sheet double the thickness is. Using the wrong adhesive can reduce sound dampening.

Sound deadening? What's the best...
The quietest engine I've ever heard run was a big Cummins in a semi truck. Don't remember all the details but the truck was what Spicer used to test and evaluate transmissions. It had several mufflers and ran the exhaust out the very back, but the most impressive thing was the entire engine was wrapped, more like plastered, in lead sheet. Even the rear axle was wrapped up in lead sheet, and I think the mufflers too. It was at the Auburn ATHS show a few years ago just sitting there idling, and until someone said it was running you wouldn't have guessed it. Lead sheet all over the engine would be heavy, a nightmare to service, and probably adversely affect cooling, but sure makes for a quiet engine.

Lead is poisonous. It was always the best sound blocker available. Mass Loaded Vinyl was developed as a non-toxic replacement. MLV is heavy like lead which can be an issue in a vehicle worried about GVW or MPG. I found another sound proofing product called MuteX http://www.mute-x.com/ that weighs only 4 ounces to a square foot. Compared to 1 or 2 pounds per square foot that is a huge savings in both weight and shipping costs. As a bonus NuteX costs less than MLV or lead to purchase. It is sold for use in buildings. It is rated FMVSS-302 which is a Federal Motor Vehicle fire Safety Standard. The downside of MuteX is it will hold water if it gets wet.

Below is a chart that shows that you want from a sound proofing material. A real measurable drop in Decibels by product. In real life you will get less sound reduction. One site said to expect 1/2 to 3/4 the DB drop in real life. However, in a car or truck it may even be less than that.

Acoustic Transmission Loss (dB)
HTML:
Frequency (Hz) and then the DB drop at that HZ.

(MLV numbers will vary a few DB by manufacturer)

MLV
100     250 500 1000 2000 4000 (HZ) STC
16      17  21   26   31   36       26 MLV 1# (DB reduction at HZ)
19      19  27   34   38   43       31 MLV 2#

Lead
125     250 500 1000 2000 4000 8000 STC
19      20  24   27   33   39   43  26  (1/64" 1.0 lb./sq. ft.)
22      24  29   33   40   43   49  31  (1/32" 2.0 lb./sq. ft.)

MuteX
125 160 250 500  800 1600 3150 5000 STC
17  16  22  30   37   44   50   58  32
Other thoughts
A few pinholes in a wall can allow 30% of the sound to pass. Seal those gaps, leaks, and holes!

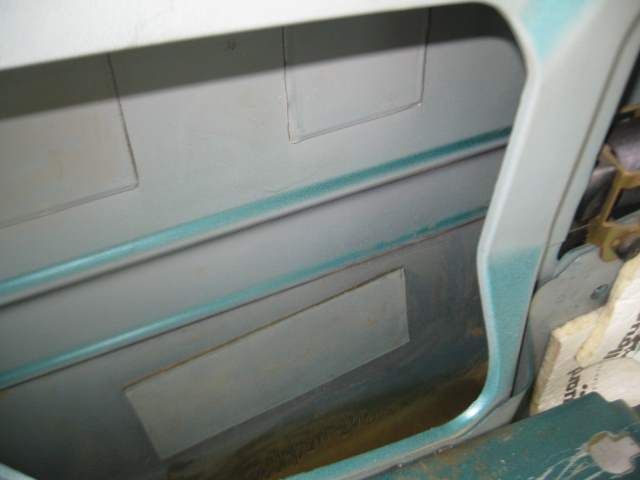

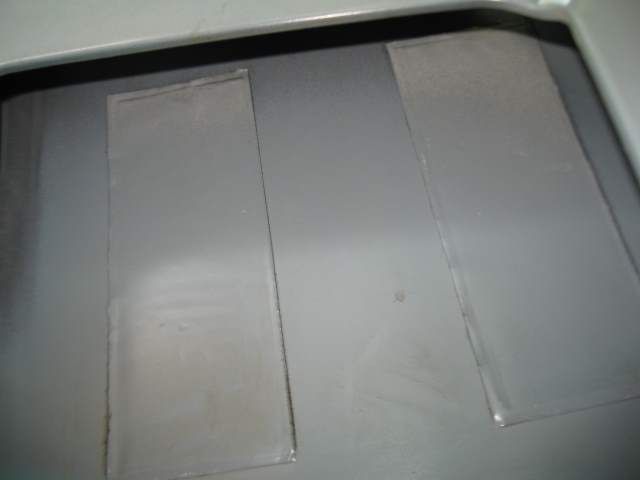

The 1st gen trucks have a second layer of metal on the inside of the oil pan. That is for vibration dampening and sound reduction. The SAE paper from the Cummins/Dodge development team mentions it. It's also about an inch shallower than a 2nd gen pan. Apparently dodge got cheap in 1994 and provided us with much louder engine oil pans. I saw where one person put a thick heavy piece of steel on the bottom of their oil pan. They claimed it cut down on the noise. Unfortunately I can not find that link.

Address voids, Get an extra set of seals from the front cowl/hood and use it to block sound from engine compartment.

Maybe you were thinking about using peel and seal for some cheap soundproofing for your truck. Depending on who you listen to either is a great or horrible stuff. Some say it is smelly and leaks goo while others say it does not. Ignoring that point lets look to see just how well it works as a sound deadener. A real scientific test was done in the link below. This also included other name brand soundproofing products that are used to deaden a panel.
Another Peel & Seal thread... but not what you think - Second Skin Sound Deadening and Automotive Insulation! - SMD Forum

If you were interested in using lizard skin for sound deadening but the price seemed to expensive read this thread. It shows a much cheaper possibility.
alternative to Lizard Skin - Hot Rod Forum : Hotrodders Bulletin Board

And consider this advice. "Most significant differences would be the ones that are thermal blocking products. These typically have ceramics or glass beads added instead to them. This increases their ability to withstand higher temps, absorb, block and dissipate the heat, but reduces their ability to control vibrations." That means make sure the suggestion above uses the right additive.

Where Ford added sound insulation.
I know, we all have dodges. But consider that ford also wanted to quiet down their diesels. They obviously placed sound barriers in places that would also work in our trucks. We can follow their pattern of soundproofing placement in our dodge trucks. The ford pieces probably would not fit our trucks.
A few "off the shelf" sound insulation barriers can be purchased from the local Ford dealer. These parts were initially developed for the Excursion (circa 2000 or so) when it was introduced, but are now standard equipment in all diesel equipped F-Superduties, except for the wheel well shielding. They are as follows:
Driver's Side Firewall insulator
Upper Cowl insulator (usually missed by most who soundproof their trucks)
Wheel Well shield
Transmission Tunnel insulator

This shows those parts being installed with db level changes.
http://www.thedieselstop.com/contents/getitems.php3?Excursion Sound Panel Install

Ford owners came up with an interesting quieting method. The door seals can compress and allow sound through. They fix their door seals cheaply. It does not require new seals to be purchased. The ford guys put tubing inside their door seals. I read this would not work on the extended cabs because they had solid pieces in the inner channel. It did work for the regular cab trucks. This may or may not work on a dodge truck or your other vehicles.

Here is a write up on the idea.
Door-seal Mod - Ford Truck Enthusiasts Forums
Here is a video showing how it is done.

Minor Flanking Paths (of sound around where it should be stopped)
Flanking, Indirect Sound Leaks - Soundproofing Walls, Ceilings, Floors
"How many times have you been able to listen to a conversation going on in another room by sticking your ear by the air vent? Standard ductwork is metal, and therefore very conductive. Ductwork can therefore accommodate airborne sound as well as conduct vibration through the duct itself.

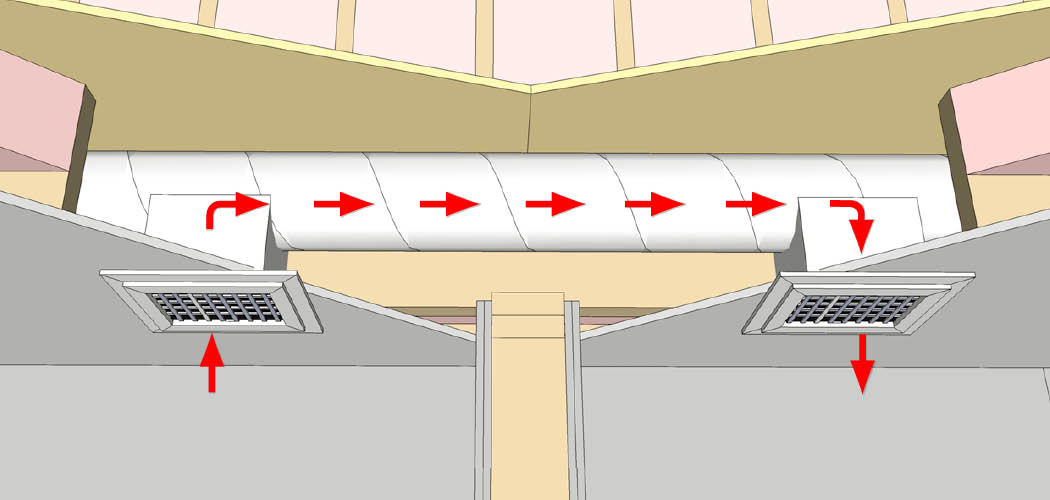

http://www.soundproofingcompany.com/wp-content/uploads/2011/06/duct-system.gif
Some things you can do to help reduce the effect of the ducts. (This refers to houses, but wait, the ideas can apply to our trucks with some minor modification.)
"Line the rigid ducts with a 1″ compressed duct liner. Generally available through any Heating & Air Conditioning (HVAC) distributor. Duct liner is available in sheets and rolls. Add as much as you can install by reaching in. If possible, replace the rigid ducts with flex duct. This round, flexible duct is soft and absorptive, and therefore not conductive at all. Introduce bends and s-shapes with the flex duct. Don’t simply make a straight line. The curves encourage the airborne sound wave to bounce up against the absorptive lining of the flex duct, thereby reducing the noise."

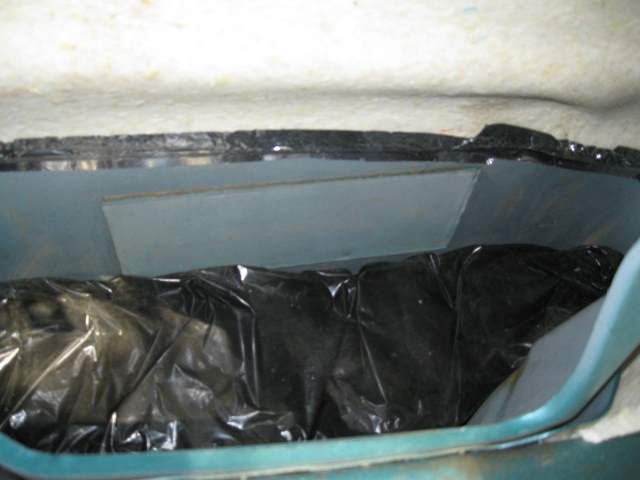

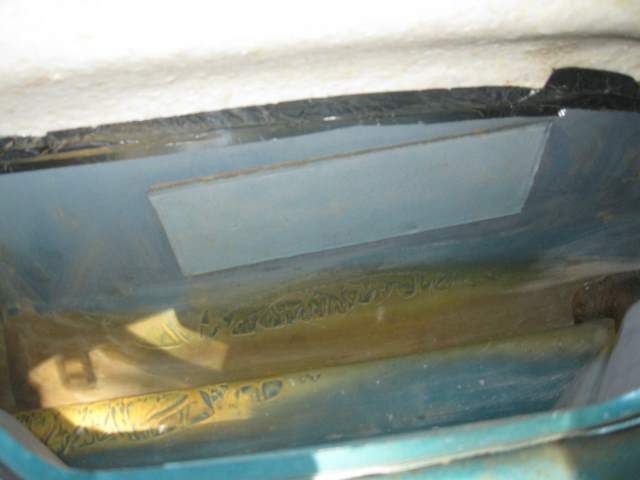

Here is how I would make that work for our trucks. Inside the cowl we have a plenum that diverts air into the cab. The windshield wiper assembly sits inside. It also can allow more sound into the cab especially if you use the airbox mod that puts an intake hose into that area. We could look for a waterproof material to put inside that chamber. Maybe mass loaded vinyl would work, maybe not. I am sure lead would go in that area. Being perhaps a bit nervous I would paint the top of the lead to encapsulate it. It would also be possible to make some bends in the lead (maybe a second piece glued in) to make acoustic chambers to catch more sound waves. Just be sure that no water will be held causing rust. That means make a smooth bottom without wrinkles and no gaps especially on the top or sides. This may require some soldering.

Useful links explaining more about loud sound.
STC ratings and what they mean.
As common as this measurement is, it is quite limited and should not be totally relied upon for real world soundproofing expectations.
Sound transmission class - Wikipedia, the free encyclopedia
Explaining Sound Ratings - STC - IIC - OITC - Delta IIC
Understanding STC and Measuring Sound Loss - Soundproofing Company

This is a big paper on environmental noise.
NPC Resources: Environmental Noise Booklet from Bruer & Kjaer

This talks about protecting your hearing and how important that is.
Safety and Health Topics | Occupational Noise Exposure

Decibel (Loudness) Comparison Chart
Decibel (Loudness) Comparison Chart

This is a link to download a free EPA manual showing how to reduce noise in the home. It is only 117 pages long.
www.nonoise.org/epa/Roll10/roll10doc26.pdf

This link talks about concrete floors and how they transmit noise. There are also explanations and pictures showing how sound travels where it is not wanted and how to stop it. That information can apply to our trucks as well as homes.
Soundproofing Articles and Library Archive

This link talks about cutting sound levels down on big trucks.
E-A-R Specialty Composites

This is a link to a website selling really expensive soundproofing for aircraft. This page offers a free aircraft insulating guide.
''HOW TO'' SOUND PROOFING THE LIGHT AIRCRAFT from Aircraft Spruce

If you want to get really technical read this. I got lost before I finished it.
Engineering Acoustics/Sound Absorbing Structures and Materials - Wikibooks, open books for an open world

Useful links about soundproofing.

The Definitive Sound-Deadening Thread!!! - Maxima Forums

This may or may not be of value. It has some options to consider.
(All Years) Sound Deadening Alternatives - Subaru Forester Owners Forum

This shows how soundproofing around your steering column can make a big difference.
Super Duty Sound Deadening - Colorado Diesel Truck Club

Sound Deadener install w/pics in a Diesel - Wow!!

Sound Deadening 101 - Diesel Place : Chevrolet and GMC Diesel Truck Forums

I saw EZ Cool Automotive Insulation heat barrier and noise reduction\ had a different kind of sound insulation compared to most. That is just low-e (brand) insulation. You may find a low-e dealer closer to you and get a better deal. This shows an install with results. citroen cx insulation The product works fantastic as a heat blocker. However, after covering everything possible with 2 layers they only had a 4db reduction. That is an improvement but perhaps not as much as could be hoped for.

This shows using actual lead being used for sound reduction if you read several pages
Noise Reduction

Make your own lead foam sandwich.
TheDieselStop.Com Forums: Sound proofing and Sound Barriers
a) I made 108 ft^2 of soundproofing mat by sandwiching:
  • "8 pound" carpet underlay,
  • 1 pound per ft^2 lead sheet,
  • "8 pound" carpet underlay and
  • 3 mil vapour barrier.
I used contact cement to hold everything together. (1 US Gallon will make more than 108 ft^2.) The soundproofing mat is about 5/8" thick, which is about the maximum you can have and still get everything together." (continue reading on the link above for more installation details)

Summary
I am searching like many others trying to find the best and most cost effective solutions to quiet my truck down. I have posted what I found after a lot of searching. Some ideas above may be imperfect. I purposefully tried to avoid getting into a brand discussion. I figure once you know what to look for you can compare products on your own in a much more informed way.

A lot of the links above are not even related to diesel engines. Of those that are are almost all articles are about a different brand of diesel. However, the general ideas of truck and automotive soundproofing apply regardless of the make and model involved.
See less See more
Reply
Save
Like
  • Like
Reactions: 5
I
If you google there is a company that makes sound proofing that snaps on various parts of the engine for sound reduction.
They say the most important place to insulate is the injection pump, I believe them.
Reply
Save
Like
  • Like
Reactions: 1
country_hick
I found this The ‘Quiet Kit’ for the Dodge Ram with Cummins Turbo Diesel and included a link to it above. ATP makes this engine "quiet kit". They do not have an injection pump cover although it covers almost everything else. The entire kit is expensive. It is around the cost of a rebuilt injection pump.

However, they claim (and a thread shown above agrees) that this can cut the sound from 95 db down to 60db. Without buying the oil pan cover it could be 70 db.
There is a review here from a 2001 dodge truck. http://www.turbodieselregister.com/reviews/ATPI.htm

There may be another company making another quieting kit for our cummins engines, I did not find it. I am sure a homemade approach could come up with good sound reduction results even if not quite as good as the professionally made and designed kit does.

Art (on this site) was nice enough to mention he had seen medium duty applications of the 6BT with a noise damper installed over the oil pan. "The original application was a medium duty Ford cab-over-engine truck. I don't know if the damper was Ford or Cummins. Those trucks used a front-sump pan that has a slightly different profile. Maybe a helpful Cummins parts guy could help. Try CPL 1527 as well as 1550." Perhaps a big truck junkyard could help find a cheaper alternative. The question remains as to whether or not those noise dampers would fit our dodge trucks.

The reason I started this thread was most threads just talk about what brand of sound deadener is best. Those threads did not cover which type to use, where to use it, or why it should be applied where it was installed. Trying to find out what actually works to sound proof our trucks is very difficult.

Most threads also just talk about quieting the cab and not the engine. I thought if I put all of this together it could help those who wanted to approach sound reduction in a more informed way. Besides, now I can find all of this easily when I need it. I do not claim to have all of the answers. I spent a lot of hours searching for information and this was the best information I could find. Hopefully it will help others to understand how to approach this silencing job in a smarter way.


EDIT: New information added below.

If you want to use the shiny aluminum sound deadening type of products this shows testing to see which performed the best in a controlled testing environment. (The list is subject to change.)
http://www.diymobileaudio.com/forum...isons/146403-sound-deadening-cld-testing.html

"My current top three, based entirely on performance and heat testing, in the order I would put them.
1st - Sound Deadener Showdown CLD Tiles
2nd - Silent Coat 4mm
3rd - KnoKonceptz Kolossus

With the products I have left to test, I don't see SDS CLD Tiles being knocked off top spot. In fact, its been top spot since it was first tested. With heat testing mostly finished, Kolossus got knocked down a notch to Silent Coat 4mm. But neither can come close to matching SDS's heat tolerance, and that is a big deal for me. As I've said before, I firmly believe that products that withstand a wider range of temperatures, will also damp vibrations better at a wider range a temperatures. I can't objectively prove it without building a far more expensive test rig, but all the information available points to that being true. Living somewhere where temps get to 110F in the summer, that is important to me.

As I said in the first post, I would be using the top testing overall product, regardless of price, in my personal builds. In a few weeks, I will be installing some SDS in my personal (well my wife's) car, and will be taking before and after measurements.

Price wise, the top three breakdown as following. I've excluded bulk packs, and limited amounts to 35 square feet. In a normal install, more than that shouldn't be needed.

1 - KnuKonceptz Kolossus - $5.42-$4 per square foot, for normal amounts.
2 - SDS CLD Tiles - $6.36-$5.40 per square foot, for normal amounts.
3 - Silent Coat 4mm - $5.47 per square foot*

I've listed Silent Coat as third, because they only seem to have one price point at this time, and in order to do a whole car, their price point is higher than SDS. Buying 16.6 square feet of SDS gets you to $5.40 per square foot, where 15.36 square feet of Silent Coat is $5.47. Anything over that is still $5.47."


CLD Testing 2 - Application Techniques Read before installing.
http://www.diymobileaudio.com/forum...722-cld-testing-2-application-techniques.html

"As you can see, you go from a 15.7db reduction in peak amplitude with a single piece of CLD Tile, to a 5.8db reduction if you cut that same size piece into 4 pieces. It also rings for much longer, and maintains its high Q frequency response. Bottom line, don't cut your cld pieces if the panel you are treating is 75% larger than the piece of cld you are using."

Here is a link to sound deadening product testing done in 2005. This is the elusive Sound Deadener Showdown test results before the site started to sell products and simply tested products. Keep in mind that after a decade many of the tested products no longer exist. Other products have been reformulated.This means the testing results might not apply to the same brand materials you can buy today.
http://users.actrix.co.nz/dougal.ellen/forums/Sound_Deadener_Showdown.pdf

I followed this idea.
http://www.dieseltruckresource.com/dev/commence-operation-silence-t287033.html

"Impressions:
Before adding all of the insulation, you could hit any section of the cab and it would sound like you were inside a big drum BONG when you smack it, now if you were to hit any part of the cab all you hear is a low muffled thud, when you get inside the truck and close the doors there are no echoes and all you hear is silence it sounds like you are inside a small padded room (no not that kind).

Without rolling down a window it is very difficult to close the doors on the first try and if you slam the doors you will feel it in your ears.

The audio sounds so much better and when you crank up the volume there are no rattles.
Once I went for a drive I realized my work was worth the time and effort, there is very little road noise and at freeway speeds you can now carry on a conversation with someone else besides yourself.

At a certain RPM I still hear a drone that I need to address but I am thinking it is the air being drawn in the turbo because I did not hear it as much when it was receiving air from under the bumper.

This was a relative easy weekend project; I started around noon on Sunday and finished up around midnight.

Something to be aware of:
It is difficult to hear sirens from inside the truck, I was sitting at an intersection and when I looked over into the opposite lane I saw a fire truck going past with its red lights and siren on, if I would have had the radio on very loud I would have never heard it. I am looking for a siren detector or circuits to build one.

Materials:
6’X 8’ X 9/16” piece of 8 pound carpet padding. Double sided acrylic carpet tape. 12 hours of my time."

http://www.dieseltruckresource.com/dev/showthread.php?t=218946

"Here is how I quieted the interior of the door with carpet padding, also make sure that all of the spring clips are installed on the door panel." (look for the picture)

This is a very similar post by the same author showing his sound reduction efforts on our site.
http://www.cumminsforum.com/forum/89-93-non-powertrain/1091170-comfortable-1st-gen.html
See less See more
Reply
Save
Like
  • Like
Reactions: 1
Philip
This is some very good reading. I found this in the rounded truck section. It deserved a copy in our section. :thumbsup:
Reply
Save
Like
  • Like
Reactions: 1
R
Pretty in depth and useable. I'd like to add a couple points beyond engine noises: get your wrenches out and tighten anything loose, rattles add up. Weatherstrips do more than keep water out. Got worn door hinges? Fix em and make sure the doors are aligned (worn hinges affect weatherstrip sealing and make more rattles). You know those rubber plugs you pulled from the firewall when adding your gauges? Put em back. Ditto the plastic sheet behind your door panels.

These things are especially pertinent in 1st gens which are 20 yrs old at best.
Reply
Save
Like
B
Thats is alot of reading! Very excellently put together though. Well worth the time to read

Sent from my DROID4 using Tapatalk 2
Reply
Save
Like
DodgeW250
This is an awesome write-up man!! Thanks!
Reply
Save
Like
peckens
Thank you!!!!!!!!
Reply
Save
Like
S
I ran my friends 2wd 5-speed D250 it was amazing how quiet it was compared to mine. I did find foam padding in the area between the trans and the floor. and also in side the shifter boot (between the inner and outer)

also when working on some cat engines they had sound deadening molded to fit the oil pan, but this was an aluminum oil pan. you could use a spray on deadener if you had it clean enuff. Another area would be the lifters.

maybe pull off and spray on sound deaden the rocker covers? I may actually try this when I do my next valve adjustment.
Reply
Save
Like
SnowXo
this is amazing, thank you
Reply
Save
Like
7999CN
I have heard of people using the tar paper material that you can get at Lowes. Is it a good idea or is that just a mess waiting to happen? Car audio store sell a sound deader but it's 12 buck per sqft as opposed to a whole roll for 26.
Reply
Save
Like
R
Tarpaper was actually used as a sound deadener way back when, it was thicker than roofing stuff though. Like 1/8 inch sheets for flat floors.

I've heard some folks have used ice block (rubberized roofing material for the eaves, goes under the shingles)

I've used peel and stick floor tiles succesfully. Cheap ones are fine. A heat gun or killer hairdryer would be needed to soften the tiles to conform to the floor.
Reply
Save
Like
  • Like
Reactions: 1
R
very informative thank you
Reply
Save
Like
country_hick
15
When I looked at my 2nd gen truck I noticed the factory did a good job of installing sound deadener. The factory actually did a good job in this one part of sound reduction. My passengers side floorpan had some minor rust. I figured that was because the cupthrower, err... cupholder had lost some drinks in the past. That water on the floor made the factory sound deadening loosen up. I pried that material off and installed some 3M sound deadening where the factory stuff had been. To me that was not really adding more deadener. It was replacing what had deteriorated.

My truck had lots of sound deadener from the factory. As far as I can tell every spot that needed sound deadening got it. That surprised me. There was deadening on the transmission hump, both front floor pans, under the club cab seat, and on all the sides. There was even sound deadening under the kick panels. I only really replaced one bad part of the factory sound deadening. I did not look at it as me adding more sound deadener material like the CLD's. I did not use the best possible panel deadener here. I used what I found cheap locally. It was needed for such a small area I did not worry about using the best material plus it was under $10 on clearance.

The one (and probably only) place the factory missed completely was the back wall. That I did put some spillguard 7/16" 8 lb carpet padding (underlayment) on. I put 2 layers of spillguard 7/16" 8 lb carpet padding under my trucks carpet. This should be easily found at most stores that sell carpeting for a house. I also added a little above the carpet on the firewall and around the steering column. The nice thing about spillguard carpet padding is it is waterproof. It should prevent your floors from rusting with your wet feet.

I can see that adding some under the plastic door panels would probably be a good idea.

After removing the carpet expect to find some rust. Remove the rust then use a good paint. I used POR-15 as it is a rust converting paint.

It looks like the cupholders did not hold the cup very well. I took out the factory sound deadening on this side because of rust and it was loose.


Now the rust is taken care of and the factory sound deadening has been replaced.


The drivers side was better.


Now it is good as it gets.


The factory actually did a good job of sound deadening on my truck. Those of you with a 1st gen may want to add soundproofing material in the areas my truck has it in.

I added some extra sound deadening on the transmission hump where the factory deadening was cut out for a 5 speed and transfer shifter as I have neither one.

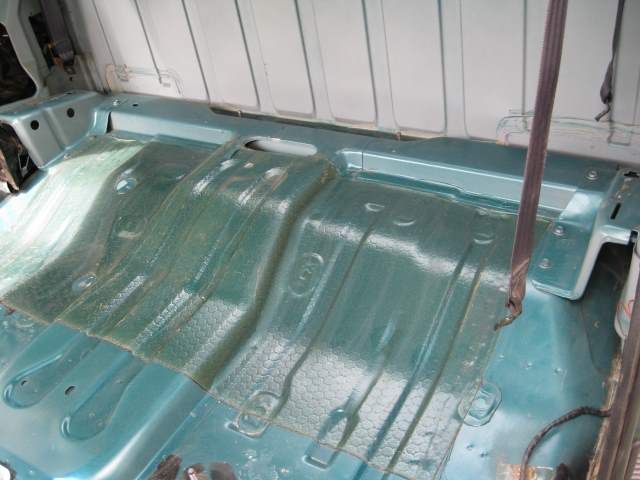

Here we see sound deadening under the club cab rear seat.


It is time to add the sound absorbing material. It is called foam. I used 7/16" 8lb spillguard carpet padding (underlayment). After applying one layer I decided to add a second layer. You should be able to find this waterproof carpet padding at most house carpet stores nationwide. Try not to order it online as shipping is far to expensive on this heavy and bulky material.

Notice the studs for the seats sticking up. Be careful, they will rip your new foam if you are not very careful.





Use some glue (I used Roberts double sided carpet tape) to hold more foam up in the area above the carpeting on the firewall. I even added some scrap foam to fill in the hole the factory left in the sound deadening material here.


I wrapped a piece of foam around the steering column and added more on the firewall. The ford diesel guys say this is an important area to cover up for sound reduction. Maybe I should add a second layer of foam here.


This is the hardest part of the job. Making the foam fit the transmission hump tightly.

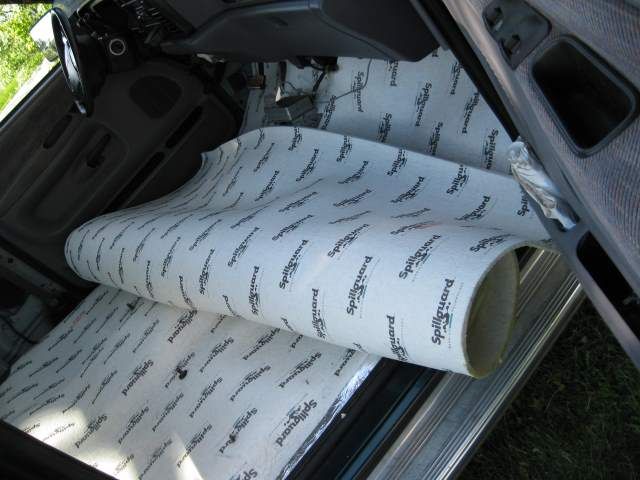

The foam did not want to lay down with 2 layers. The foam is bunched up.


I sectioned the foam to eliminate the bunching. Then I used aluminum tape to hold it together and hopefully remain waterproof.

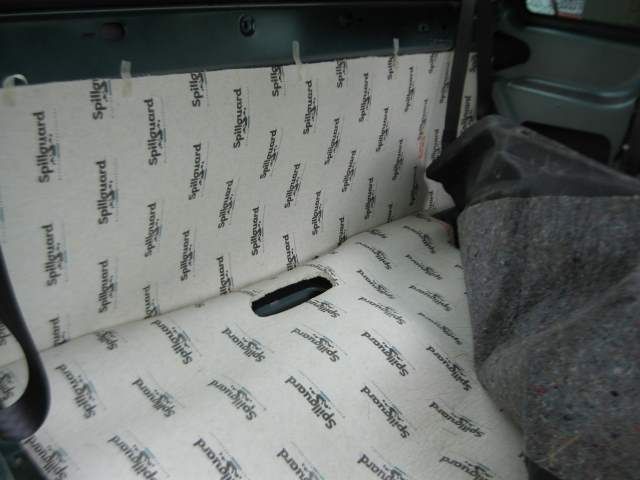

Yes, I did put some foam behind the back seat on the back wall.


So far all I have done is 2 layers of foam under the carpet and one layer of foam on the firewall above the steering column on the drivers side.

This is what I used to show DB levels with.





The end results so far are 62-63 db at idle down from 85db at idle and greatly reduced noise on the road. My radio went from 28-32 down to 18-24. I could not hear the radio before on level 18. My grand marquis with the same exact radio usually is set at 18-22.

My 1999 grand marquis idles at around 50dba. 60dba with a -10 is as low as my sound level meter gets so it is hard to say for sure exactly how quiet it is. It is definitely quiet.

My truck now idles at 62-63dba

Driving down the road my Grand marquis will get up to about 63 db below 30mph with mild acceleration. It seems to get up to 66, perhaps 68db when getting around 50 mph. Yes, I am sure accelerating hard it would make more noise.

My truck now seems to be at 67-74dba while driving at 50 or less. It seems to be quieter when the torque converter is unlocked. This makes sense. I noticed that at higher rpm's the engine is quieter than at low rpm's. It may also have something to do with full engine power being applied compared to some power loss through the torque converter.

You can see without a doubt that my Grand Marquis is still quieter than my truck. However, driving down the road the grand marquis is not significantly quieter. The truck used to be much louder than my car would ever be unless perhaps the exhaust fell off completely.

1999 Grand marquis 50dba at idle 63-68dba on the road.
My now sound deadened 1997 dodge diesel truck 62-63dba at idle. 67-74dba on the road.

Perhaps adding more sound insulation to the doors and other panels would help the truck become even quieter.

I can still hear the diesel engine sound in my truck but it is not overpowering like it used to be.
See less See more
Reply
Save
Like
  • Like
Reactions: 3
R
While 1st gen diesels got much more sound deadener than the gassers, there is still lot's of room for improvement. As noted, the back wall of the cab is pretty much untouched.

Hick, how long have you been running that foam? is it holding up to the heat ok?
Reply
Save
Like
  • Like
Reactions: 1
country_hick
10
I just put the foam in a few days ago. It should be fine. It is above the floor pan where the factory carpet is. I can not picture that getting to hot and melting. Part of the reason i chose this particular foam is it has a waterproof membrane on it. That should mean any spills cause no problems. It should also mean rain will not cause problems either when the door is opened.

The back wall has no sound protection at all. It looks like the roof also has nothing in it. Apparently this is true for both the 1st and 2nd gen trucks.

I finished up my drivers side door panel today,

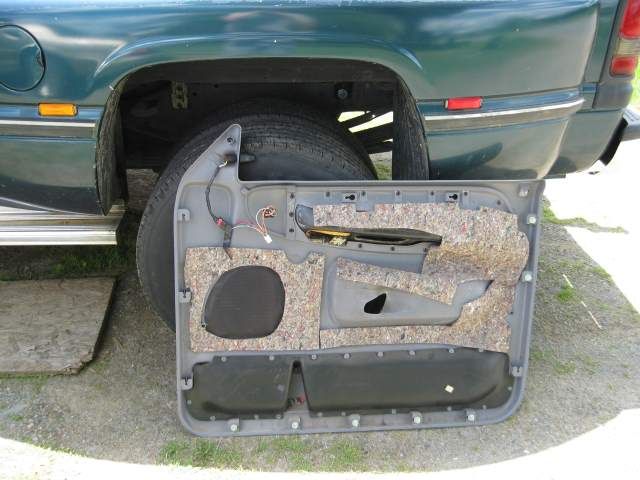

This is what the factory gives you on a 2nd gen truck. The 1st gen truck has door panels that are much easier to work with.

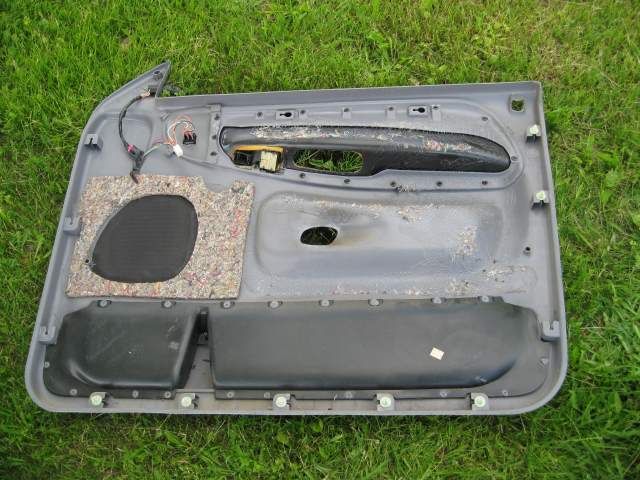

I took off the small material and left the speaker sound material intact.


I added a piece of foam where the mirror mount gets covered up.

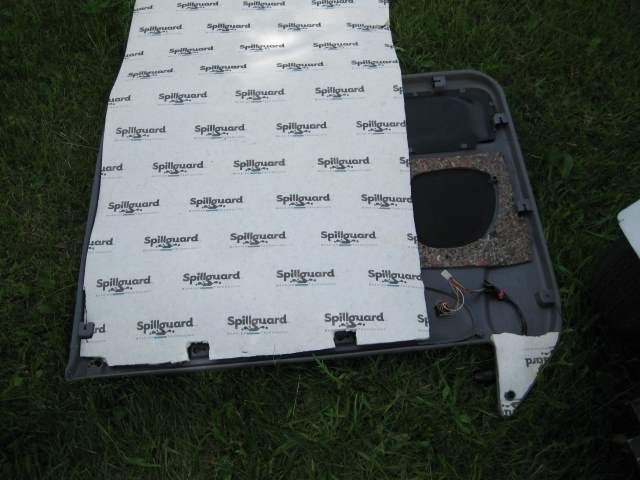

I test fitted a sheet of carpet padding.

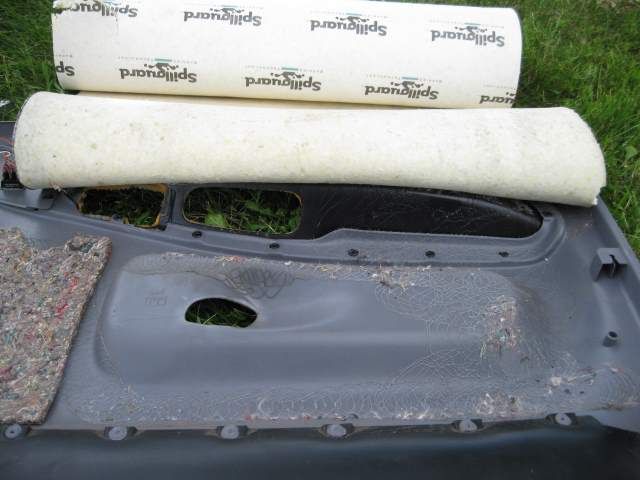

I glued down the foam at the top of the door panel.

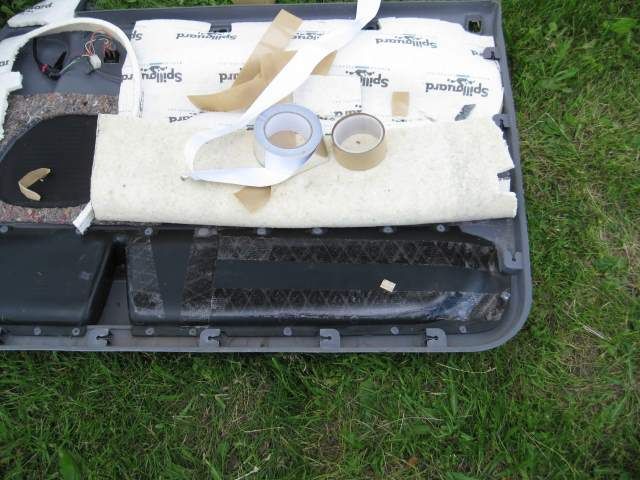

Here the curve is ready to be covered.

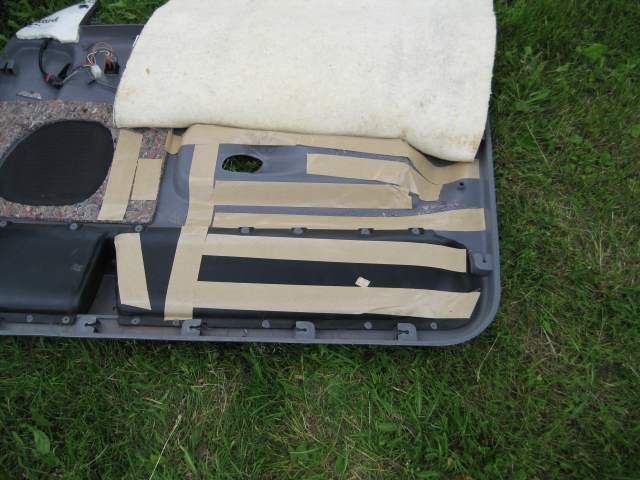

I applied more roberts double sided carpet tape.

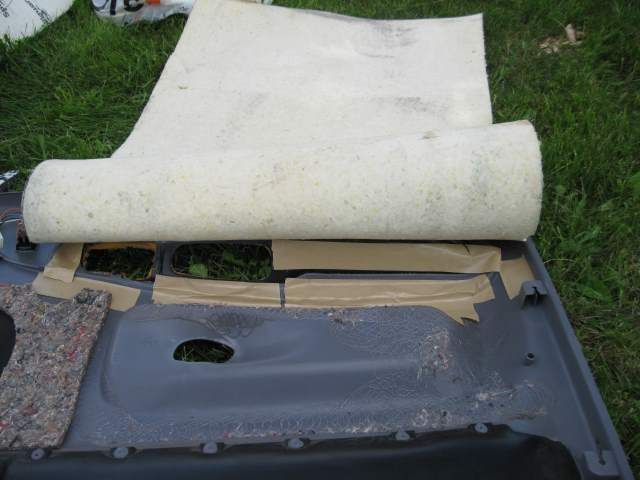

Here the glue is ready for the foam.

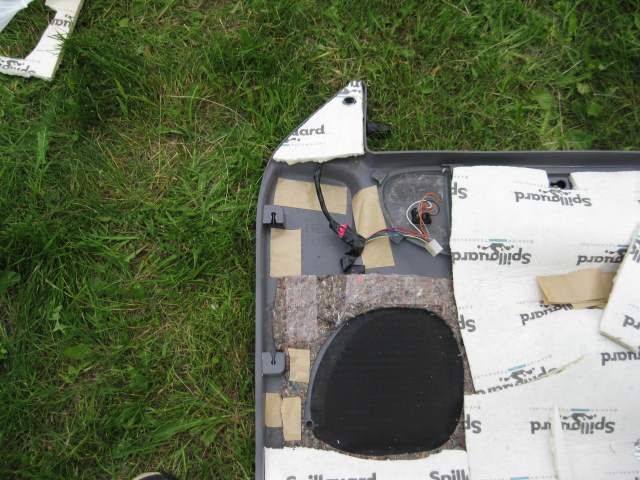

I patched in more foam around the speaker hole.

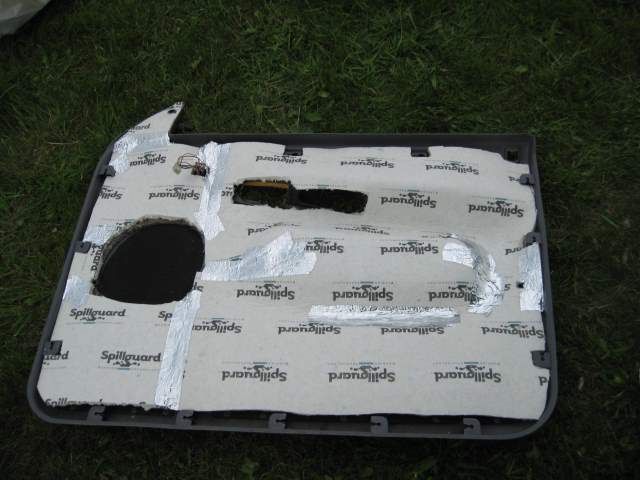

Here the panel is complete except for cutting out the holes for the door handle and window controller.



Now my door panel is back on the truck.

I can not see much if any difference in dba between doing the doors or not. However, the truck should at least be easier to cool off now with the added insulation.
Here is why I do not see a reason to add more panel deadening to my truck.

Here is a video made with the floor and both doors having foam added.

Here is a video with just the floor having foam added.

Here is an idle dba video with just the floor done.

Here is a video showing dba at idle with the floor having 2 layers of foam and both door panels having 1 layer of foam added.
See less See more
Reply
Save
Like
  • Like
Reactions: 2
only in TEXAS
This is awesome,will definitely look here if I ever buy a 1st gen :D.
Reply
Save
Like
country_hick
10
I decided to add the same spillguard carpet padding to my club cab section.

First, dodge did a good job of panel deadening my 2nd gen truck. I have to give them credit for doing this much right.



This shows how tall the sound deadening pads are up top where they are not easily seen. If your trucks lacks these add some CLD material to deaden your panel.

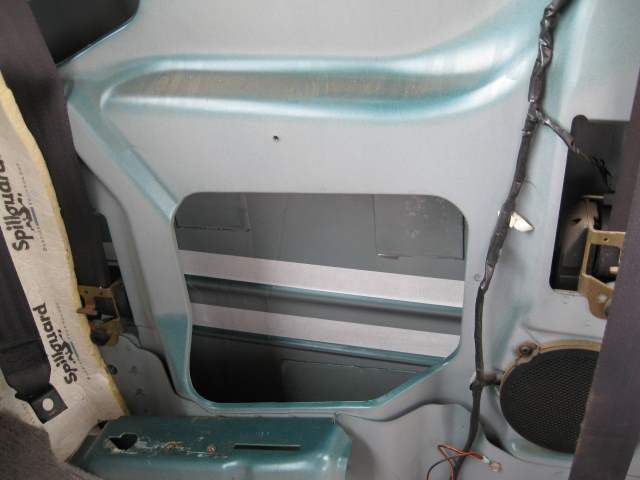

After cleaning the metal I added 4 strips of double sided carpet tape. This is what is going to hold the spillguard carpet padding in place. I believe in placing a strip of tape everywhere you have a bump in the mounting surface. That way the tension of the padding wanting to get away from the bump is resisted by the tapes adhesion.

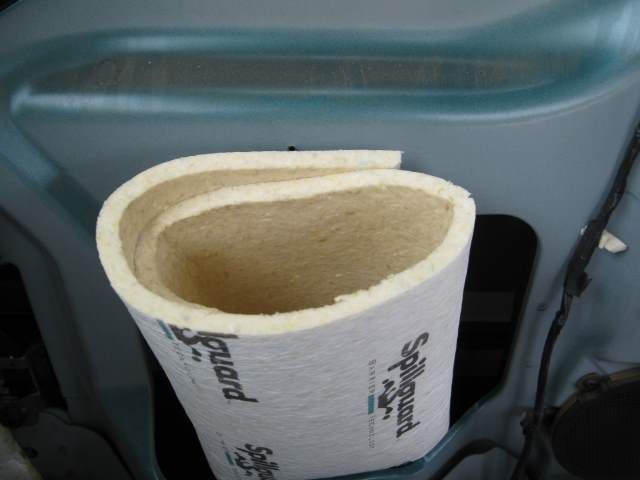

I discovered the easiest way to install the padding was to roll it up and then squish it into the hole. Inserting the foam as a flat piece was far to difficult. I used a piece of foam that slid behind the structural member. That covers much more area. I used a piece about 30 1/2" x 22". Then I needed more for below the bottom body line.



Once the foam is in place The tape needs to be uncovered. Then maneuver the foam into place. The foam will try to get out of place many times and succeed. Keep trying eventually it will be close enough. Pulling the paper covering off the tape is difficult. Everything is hidden and fighting you at this point. The sheet metal you are working near has sharp edges. Expect to get some cuts and scrapes, I did.



The foam is in place on the top part of the club cab section.


I used some aluminum tape to keep the bottom of the foam from collecting water.



I put the factory sealed bag of soundproofing material back into place.


I decided since the bag covered about everything down low I would add some more spillguard foam on the bottom. I placed the waterproof membrane on the bottom so any water that comes up from below should not cause any rust issues. I used excess scrap material and made it into a U so it mostly holds itself in place.



Yes, the aluminum foil tape was also used to hopefully hold the foam in place.


This should help a little with sound reduction. Those who have drone should find an improvement doing this. I mostly did this to make my a/c work better. Once I add some foam above my headliner I expect to have a very cool truck in summer.
See less See more
Reply
Save
Like
B
Nice write-up, very helpful. Since I have a 5sp 4x4, there is a large hole in the center where the sticks come out. I made a 2 piece plywood cover that covers the hole, leaving little slots for the transfer case stick and a hole for the transmission stick. I padded both the bottom and top of the plywood. Once the two original covers were back in place, there was a big difference in the amount of sound. Stock, there is only these two pliable covers that try to deaden the sound. Take those covers and go for a drive. The amount of sound that comes up from the road, engine, transmission and transfer case is huge.
Reply
Save
Like
1 - 20 of 35 Posts
Cummins Diesel Forum
A forum community dedicated to all things Cummins Diesel! Originally founded for owners and enthusiasts of Cummins powered Dodge pickups, the Cummins Forum has expanded to include ALL Cummins Engine applications! Come join the discussion about reviews, drivetrain swaps, turbos, modifications, classifieds, builds, troubleshooting, maintenance, and more!
Full Forum Listing
Explore Our Forums
03-07 Performance Parts Discussion 03-07 Powertrain 2013-2018 General Discussion 98.5-02 Powertrain 98.5-02 Performance Parts Discussion
Top
