Alright guys I had a build thread on here before but none of the pictures work anymore so I decided to reupload them and have a new thread with working pictures. My build has been going on for 2 years now and I am an 18 year old kid that is going to be a welding student soon.

Anyways I started this build with a 1991 non intercooled w350 that I was going to put a Ford body on the frame.


I ended up getting a deal on a 94 CCLB Dually Chevy that had a 6.5l in it so I decided to paint the Cummins motor and pull it off of the 91 frame and chop up the frame.

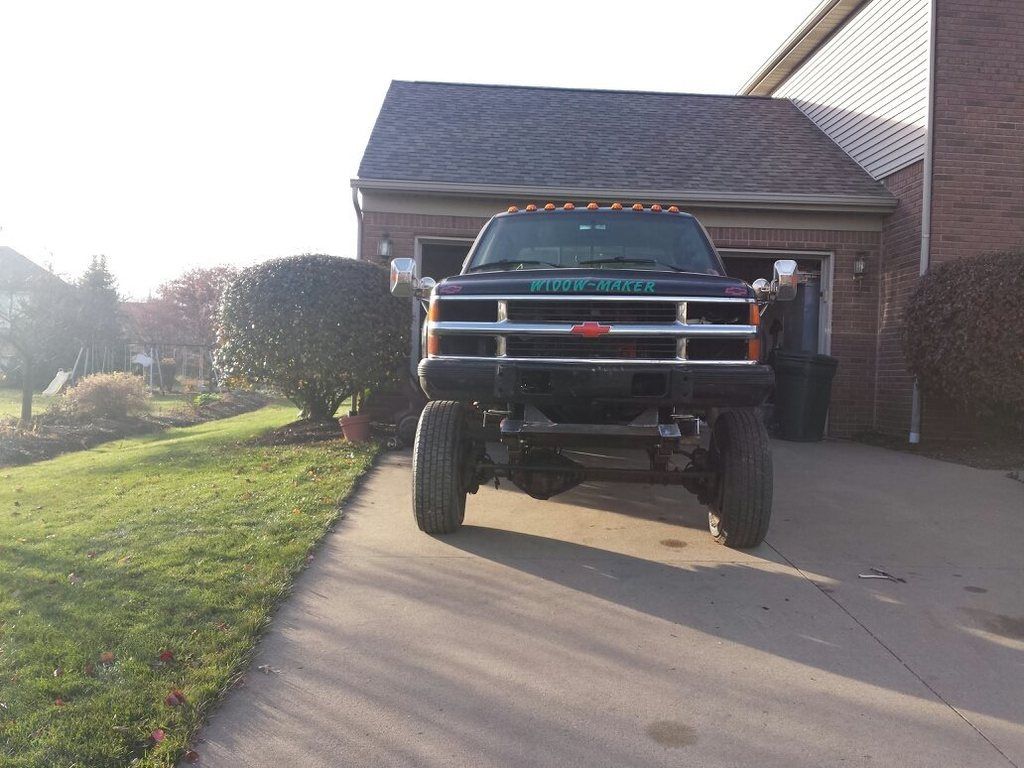

Here is the new truck for the swap!





Pulled the 6.5l and 4l80E out without ever pulling an engine before.



Test fit the first gen motor in the Chevy! (Later sold this engine and trans and got p pump motor)




Next I started on the SAS, had a friend do most of the work since I didn't know much at the time.






Here is a motor mount pic of how it was done if anyone is curious.


Took the old bed off because it was pretty rusty and it had a hole in the bed from a stack!


Finally got some steering work done.




Now my friend bought this POS Cummins swap f150 just for the nv4500 and he didn't want the motor so he sold it to me for $1000.



All the trucks at my mom's house!

  • Like
Reactions: Zaicran

·
Registered
Joined
·
449 Posts
Discussion Starter #2
Pulled the first gen motor and getrag to sell without the transfercase for $2,500 when I paid less than that and it was delivered to my house!


Found a deal on a zf6 since I didn't have a transmission anymore.


Saving the Cummins from the green pile....


And taking the green truck to the junk yard where it belongs!!


Then I decided to give the new to me Cummins a paint job because it was pretty ugly.




I didn't want to spend the same amount on an adapter plate as I did the transmission so I decided to take a piece of 3/8 in plate to a machine shop to see if they could make me something. I gave them my transmission and nv4500 adapter plate and they came up with this for $400 and it uses the Dodge starter and I didn't need a crank spacer!


Putting the pieces together...


Test fit with the new adpater plate. (had to cut floor)


Ready to go in!


I ended up doing a dash swap because I didn't like the 88 to 94 sqaure ones. So I found a nice 95 dash that had no airbags and painted it! (still not complete)


Got some new headlights and painted the bow tie black.


Then one day I was worried the head gasket blew on the truck so this is when things started to get serious. I pulled the head off of the truck...



Then I found myself cutting the intake plenum off with an angle grinder.


Gave it a nice port and polish.




Got the head back from being milled.


Then I got the head decked and the holes drilled for the intake. I ended up tapping them and I had o rings installed after I took this picture.


Started to work on the new runner intake!




Here it is done with the head ready to go back on! Oh and a new color scheme.

  • Like
Reactions: Broaner

·
Registered
Joined
·
449 Posts
Discussion Starter #3
The head is back on with ARP head studs.


I finally got a new bed for the truck! Sat for over a year without one on it.


The truck was getting a compound turbo setup so I had to relocate the second battery to the drivers side. I just made a new tray out of some angle, two half inch bolts, some 1/8 flat stock, and the old battery tray.




Then I made the HT3B turbo support mount and put it where I wanted it!


After that I made the hot pipe and wrapped it.


And after two years this is how it looks under the hood! Hopefully going to get this running within a month because I need to drive it to school. More updates to come very soon!


·
Registered
Joined
·
146 Posts
Awesome build! Hope to see it running soon with the compounds


·
Registered
Joined
·
449 Posts
Discussion Starter #7
Wondered what had happened to this truck. Glad to see your still at it.
Had a really busy summer at work. Did over 50 hours a week most of the time and I work from 12 til 10 or 2 til 12. Cooking is a tiring job so I didn't work on it much! Only had one day off a week the whole summer.


·
Registered
Joined
·
31 Posts
Looks like you're doing a fine job!

One thing I noticed. On your steering when using HEIM joints I always thought it was good practice to set them up in a double shear and if not that then have a flat washer in place to keep the socket on the joint from coming completely off the bolt in case of failure. Maybe I'm wrong but I feel I read that somewhere.

Either way, I'm looking forward to more progress


·
Registered
Joined
·
449 Posts
Discussion Starter #9
Looks like you're doing a fine job!

One thing I noticed. On your steering when using HEIM joints I always thought it was good practice to set them up in a double shear and if not that then have a flat washer in place to keep the socket on the joint from coming completely off the bolt in case of failure. Maybe I'm wrong but I feel I read that somewhere.

Either way, I'm looking forward to more progress
I have safety washers installed now. They are like a flat washer but they are shaped kind of like a cone, adds some misalignment too.


·
Registered
Joined
·
1,906 Posts

·
Registered
Joined
·
449 Posts
Discussion Starter #13
Yes they do.
No you need to get ones made to fit these trucks. The base for the mirror on these trucks is smaller than the ones that had these style tow mirrors. You have to get the ones that were modified to fit these trucks. I bought mine from eBay. You can get power or manual ones.


·
Registered
Joined
·
1,906 Posts
They make direct bolt ons for 88-98. Maybe you bought the wrong ones.


·
Registered
Joined
·
449 Posts
Discussion Starter #15
They make direct bolt ons for 88-98. Maybe you bought the wrong ones.
I was saying that the ones off of a nbs truck don't bolt right up and that you have to get the 88-98 ones that were made to fit these trucks.


·
Registered
Joined
·
2 Posts
Awesome Job!!


·
Registered
Joined
·
449 Posts
Discussion Starter #18
Started to work on the down pipe






Looks like the hood would hit it but it won't. Going to heat wrap it when it's done too!


·
Registered
Joined
·
62 Posts
Nice build thread. I want to do something like this one day. Keep up the good work
