2013+ 3.0 to DD Radio Install plus cameras

9776 Views 23 Replies 10 Participants Last post by  wixthedog,
wixthedog
9
After getting a lot of questions in my PM inbox I thought it would be best to compile all of the radio installation pictures and details in one spot. The installation is very easy and anyone that has a little bit of wiring experience can do this without much drama. It does require that you cut a metal bracket but it does not change any dash integrity and you can still go back to the stock 3.0 radio anytime.

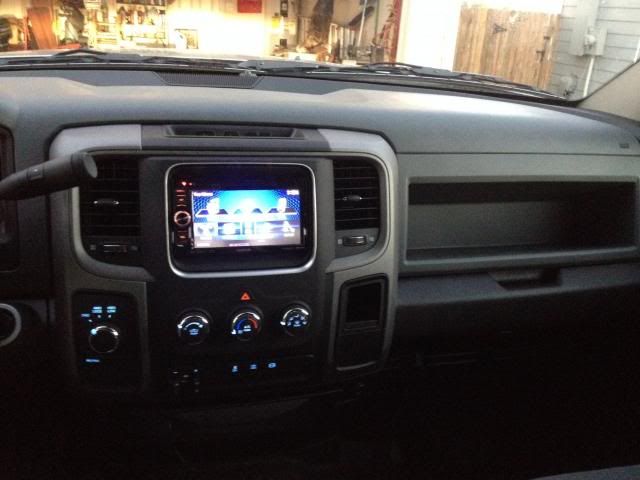

I installed a Kenwood DDX470 using a basic install kit and harness. We have a powered antenna so a special adapter is need. Sonic Electronix has everything you need in stock and for great prices, I suggest going there.

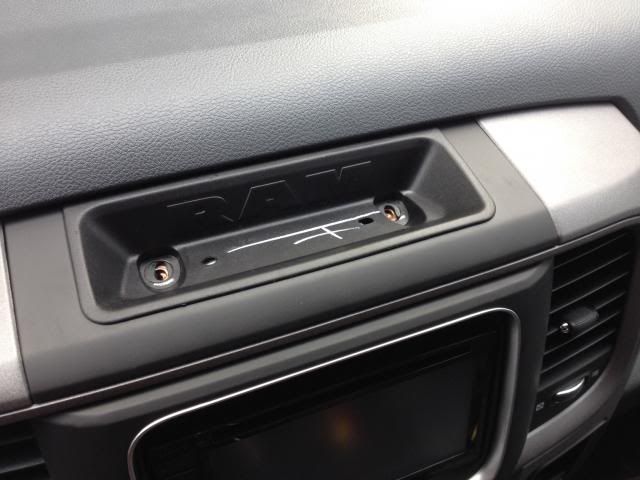

You will remove the top rubber piece from the bexel and use a T20 torx to remove 2 screws. Once those are out, PULL! There is not anything else holding the bezel except from plastic clips. Note- these white clips do come off so make sure you find them and reattached them before reinstalling the bezel.

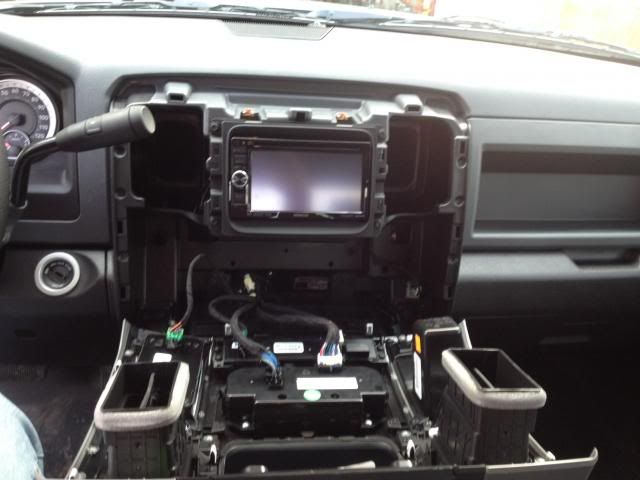

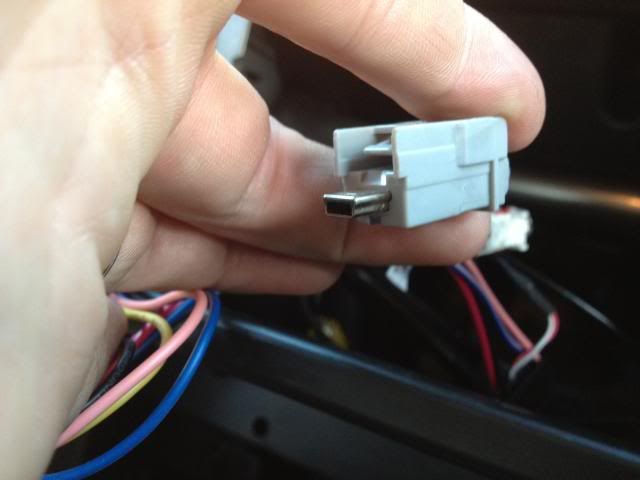

Use a 9/22 socket to remove the stock radio and disconnect the harness/mini USB/sat radio/antenna.



Now you need to cut the metal bracket. My hacksaw would not work so I used the dremel, that was a bit messy but it made short work of it. Be sure not to cut wires!

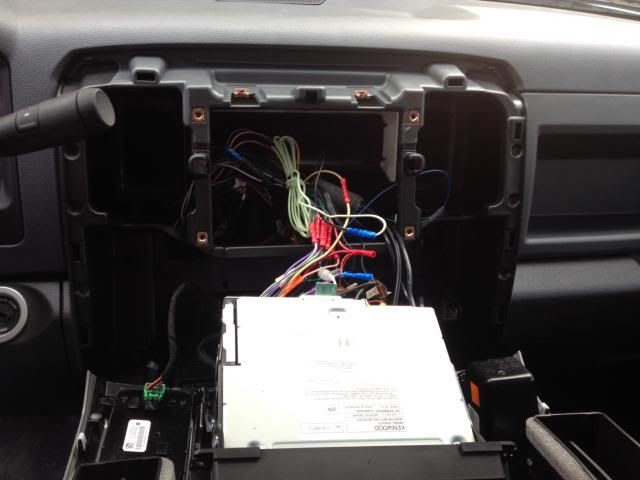

Hook up wires! Be sure to ground the brake switch to chassis while you are there if you intend on doing a bed camera.

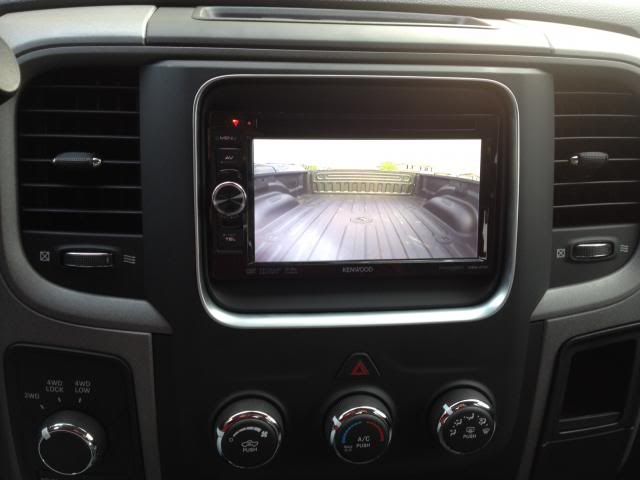

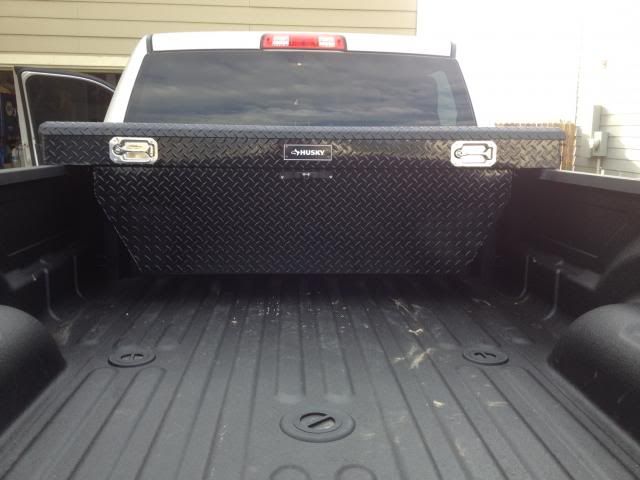

I took the time to install and wire in a bed camera. I mounted in on my toolbox and it maks hooking up to goosenecks a breeze! It may not be the coolest looking camera but it was the right price, free. If I were to buy one I would get a keyhole style. This is where it becomes necessary to ground the brake switch otherwise it will blank out when not in park.

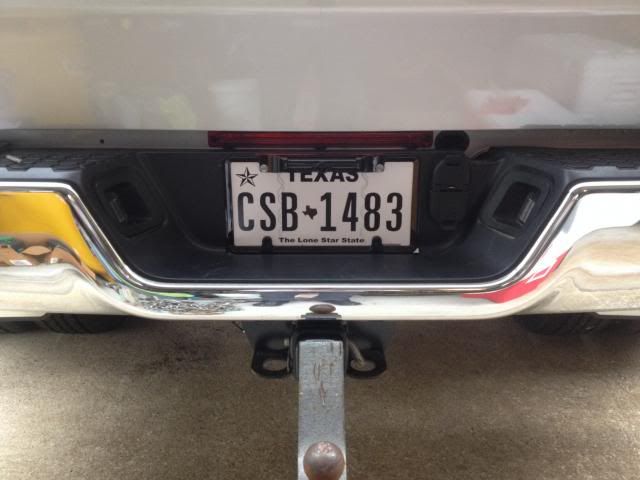

I did wire in a license plate frame reverse camera as well but I broke the damn thing! I ordered a replacement so I will update when that comes in.

Feel free to ask questions or tell me I am dumb, I'm easy.
