48RE shift kit install (47RE also)

anyone want to see a SUPERIOR shift 48RE shift kit install ??

BAXY is offline
Sponsored Links
Advertisement

post #2 of 49 (permalink) Old 10-19-2010, 06:39 PM Thread Starter
Diesel Head

Join Date: Jan 2010
Location: Sparwood,BC , Canada
Posts: 1,162
Thanks: 6
Thanked 145 Times in 82 Posts
iTrader Score: 0 reviews
2004 48RE with TV cable
this kit can be used from 2003 to 2007 as long as it is the 48RE valve body

the customer just wanted improved performance from his trans and a little better for towing, this kit is going to be install right out of the box no tips or tricks extras or all out performance. That is all the customer wanted . Next time I do one if it is different I will post updates.
BAXY is offline
post #3 of 49 (permalink) Old 10-19-2010, 06:45 PM Thread Starter
Diesel Head

Join Date: Jan 2010
Location: Sparwood,BC , Canada
Posts: 1,162
Thanks: 6
Thanked 145 Times in 82 Posts
iTrader Score: 0 reviews


shift kit I know it says 2005 and newer but it fits all 48RE valve bodies


48RE VB


47RE VB


govenor block and solenoids removed

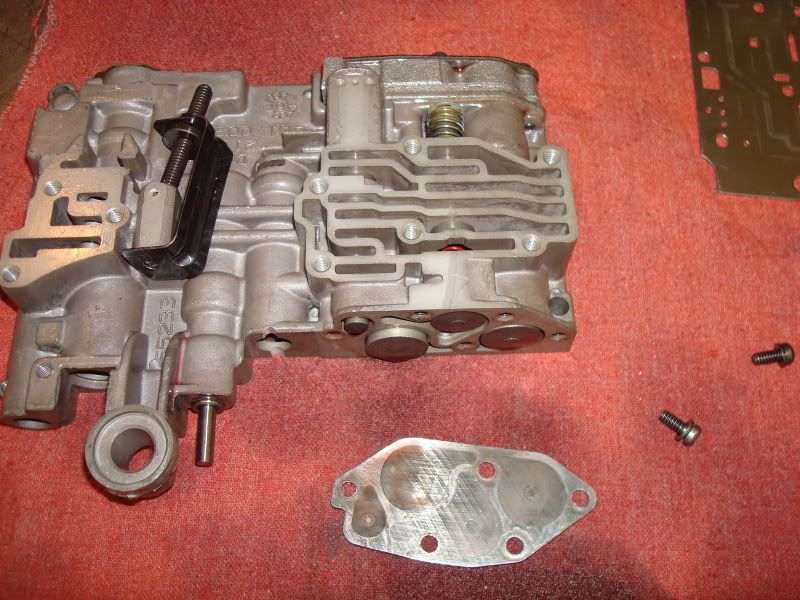

boost valve cover and shuttle valve cover removed , rooster comb pressure regulator and switch valve removed
BAXY is offline
Sponsored Links
Advertisement

post #4 of 49 (permalink) Old 10-19-2010, 06:53 PM Thread Starter
Diesel Head

Join Date: Jan 2010
Location: Sparwood,BC , Canada
Posts: 1,162
Thanks: 6
Thanked 145 Times in 82 Posts
iTrader Score: 0 reviews

all screws removed and seperate into 3 pieces


don't lose this little ball

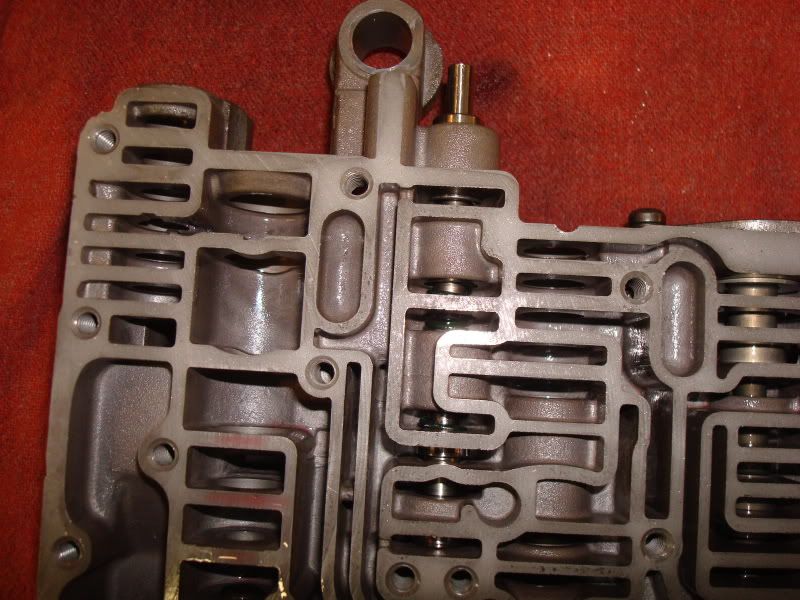

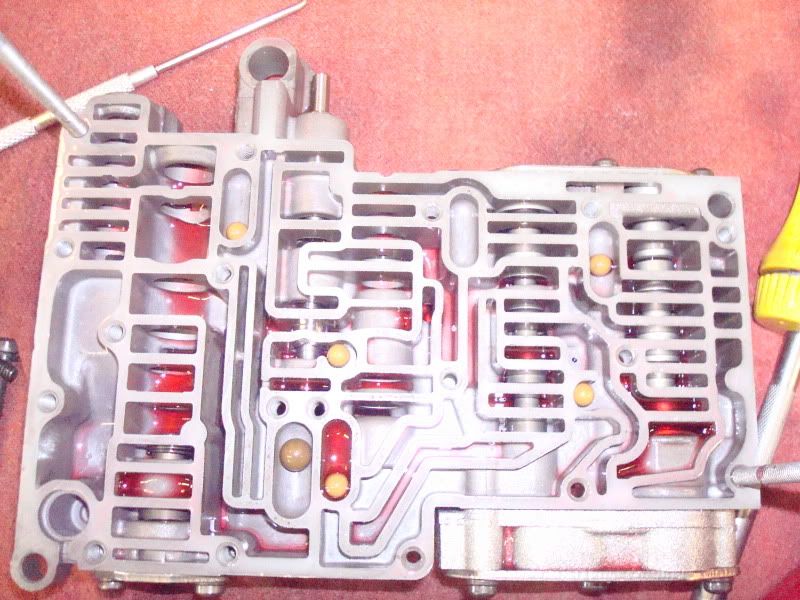

main body 7 check balls


one large six small


little jig included in kit to cut a channel in the manual valve bore


channel cut


bottom of pressure reg bore scribe a line


line


remove plug and drill .055" hole
reinstall plug after cleaning
BAXY is offline
post #5 of 49 (permalink) Old 10-19-2010, 07:25 PM Thread Starter
Diesel Head

Join Date: Jan 2010
Location: Sparwood,BC , Canada
Posts: 1,162
Thanks: 6
Thanked 145 Times in 82 Posts
iTrader Score: 0 reviews

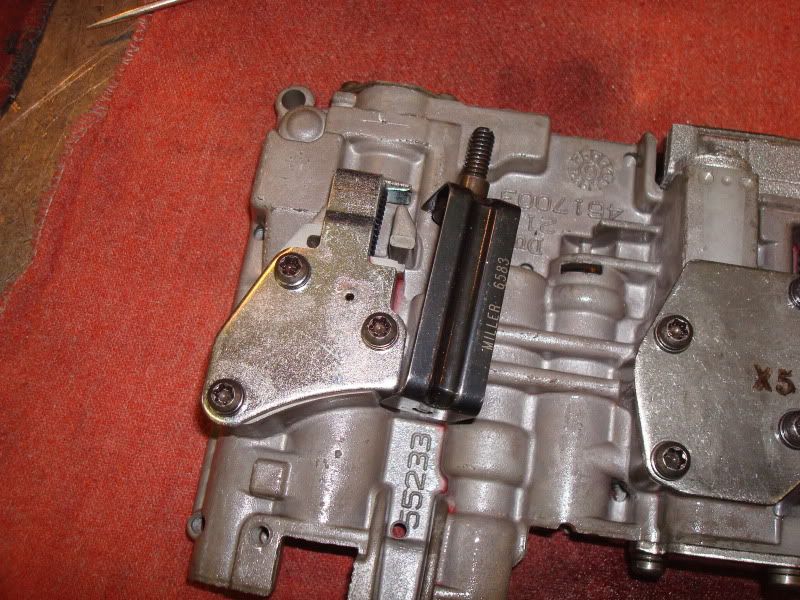

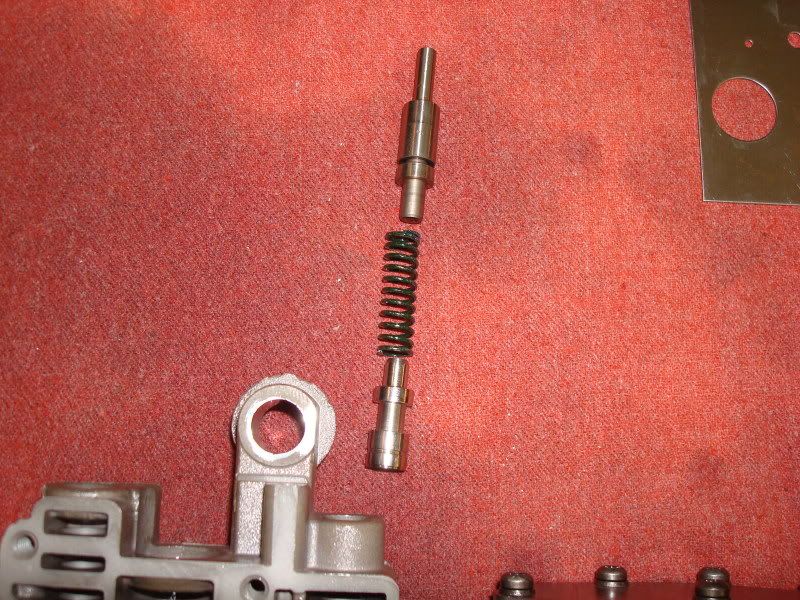

new TV valve line up, valve and spring included in kit


assembled

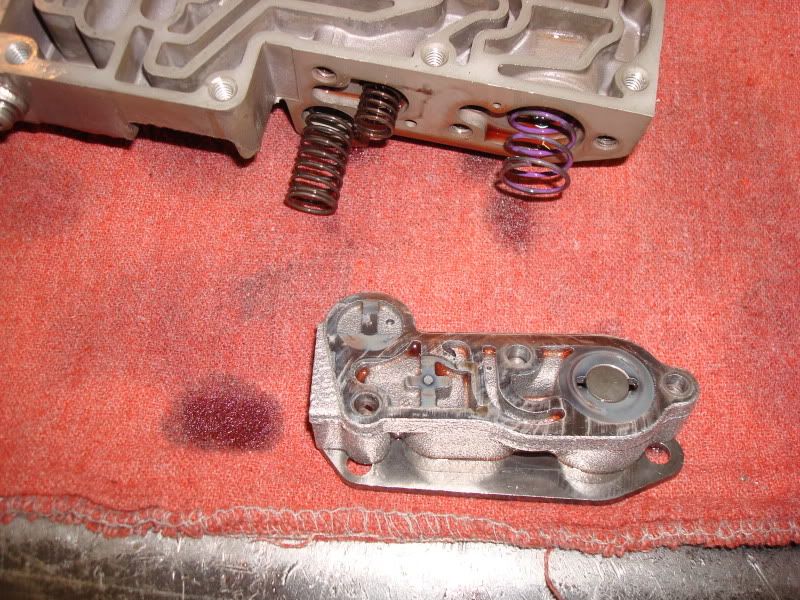

remove TV limit body


switch out spring from kit


remove cover

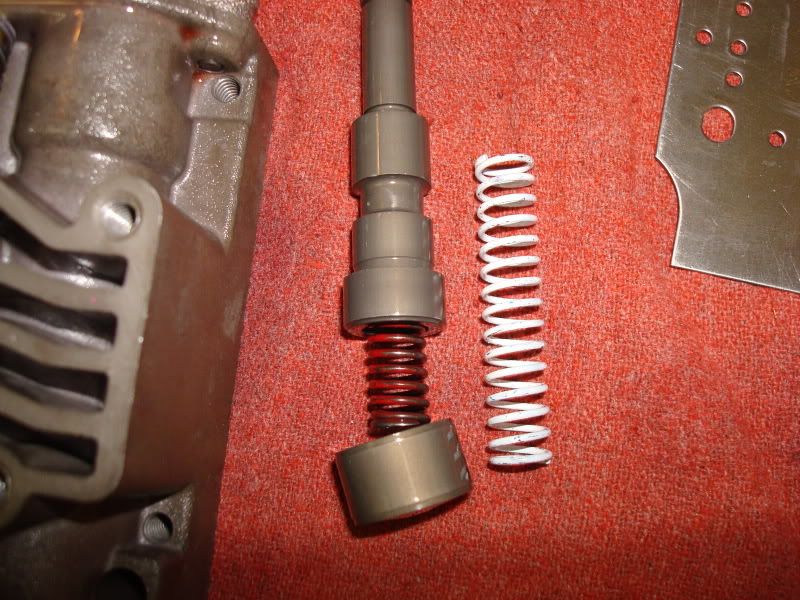

remove shuttle valve , spring and plug... replace red spring with white from kit

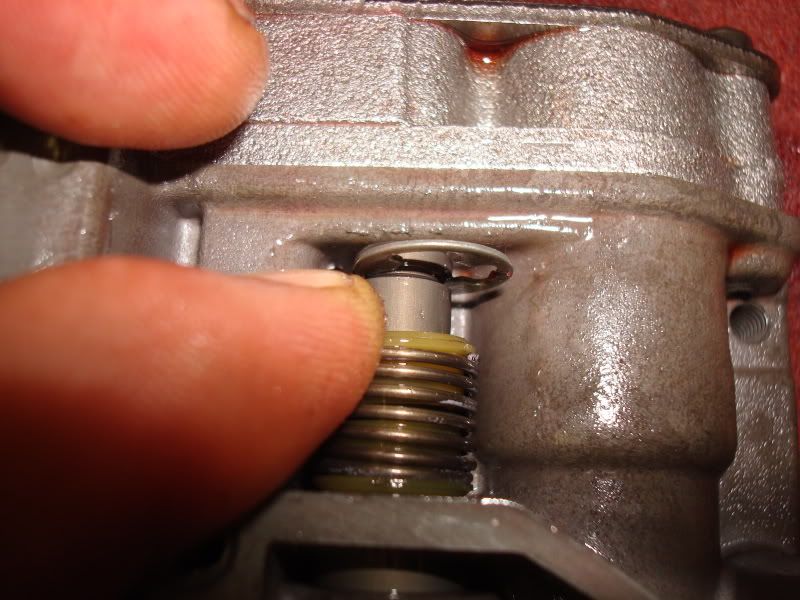

installing clip on shuttle valve

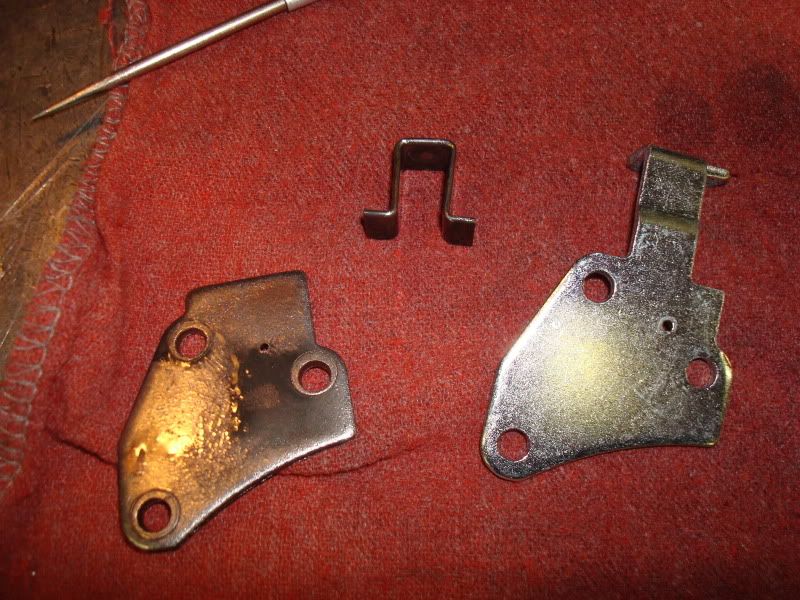

replace boost valve clip and cover with new cover supplied
clips LOVE to break and the new cover has an updated orfice size


installed

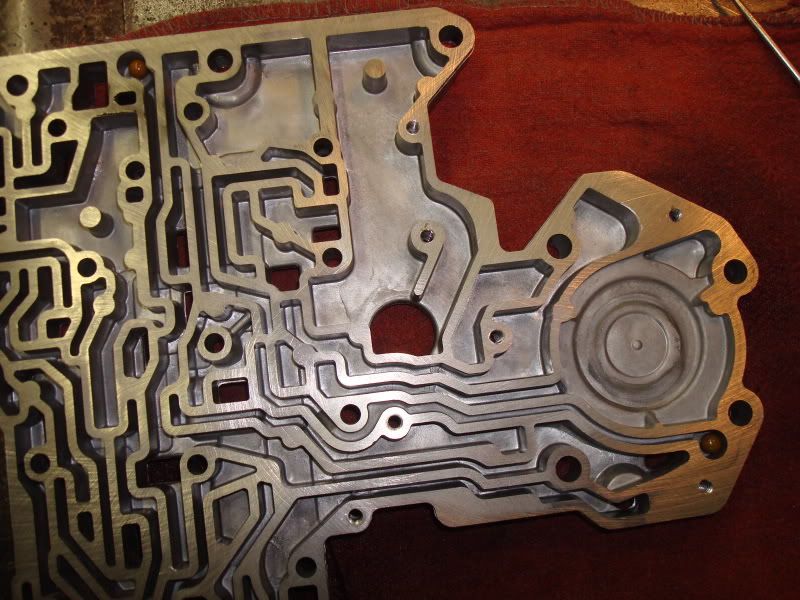

dissasemble channel plate section of VB
notice 2 check balls the one on the lower right corner was missing (snow plow trans) customer was complaining of a rude revers .. this was the problem just put in a check ball softens up reverse engagment a bit

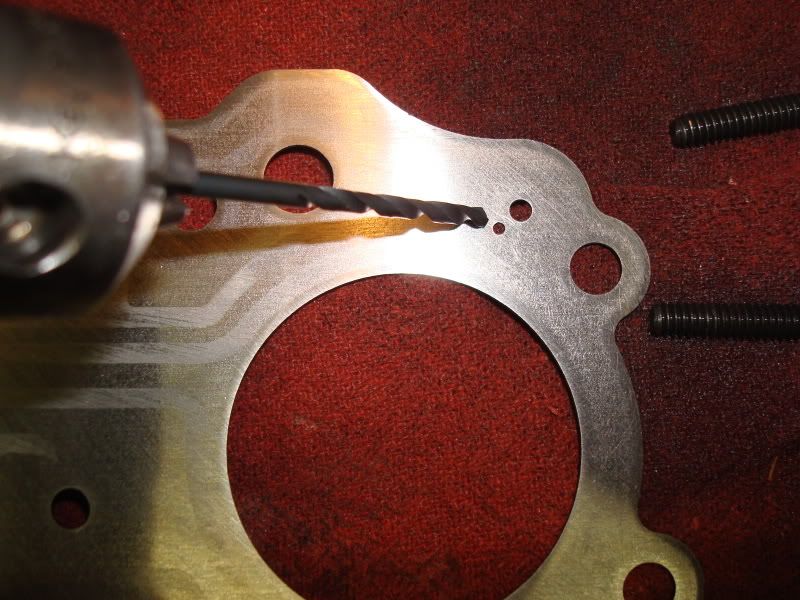

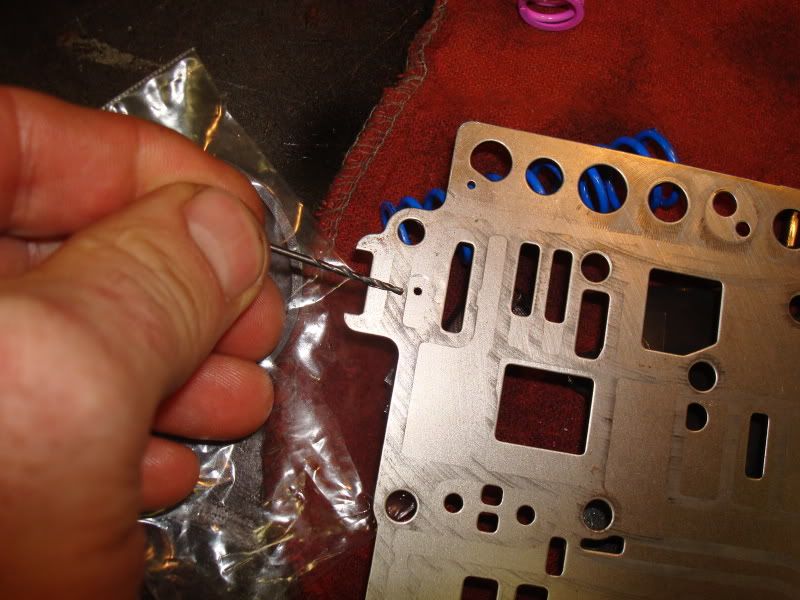

drill small hole to .109" to speed up revese engagment a bit

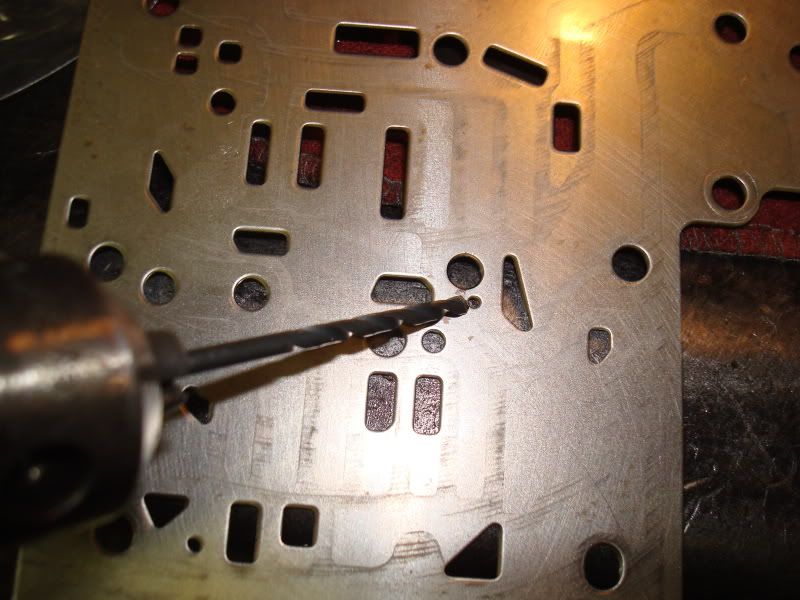

drill .109" I think this speeds up 3rd apply


drill .055" helps with LU apply I sometimes go bigger but on a 48RE it may "POP" a bit if you do or if you have a low stall converter it may "POP" a bit as well


reassemble don't forget filter also try to line up the holes as best you can

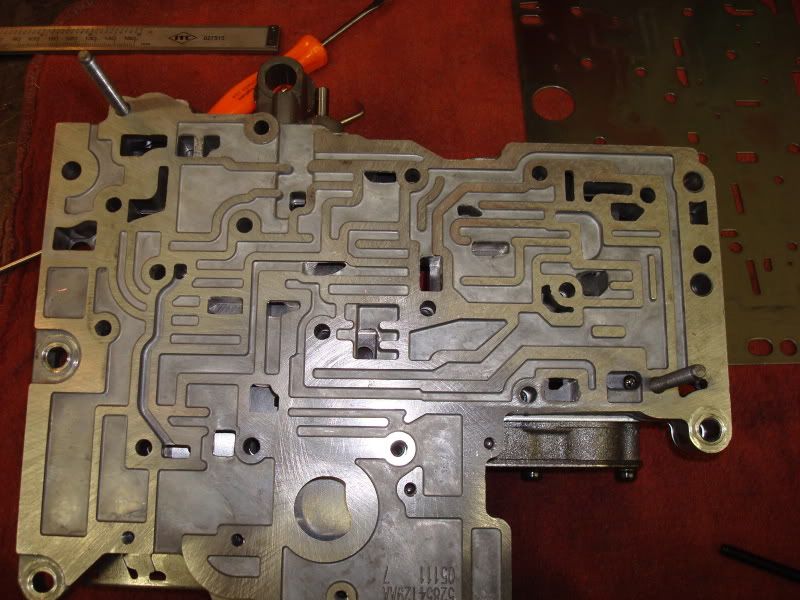

check balls notice one left out

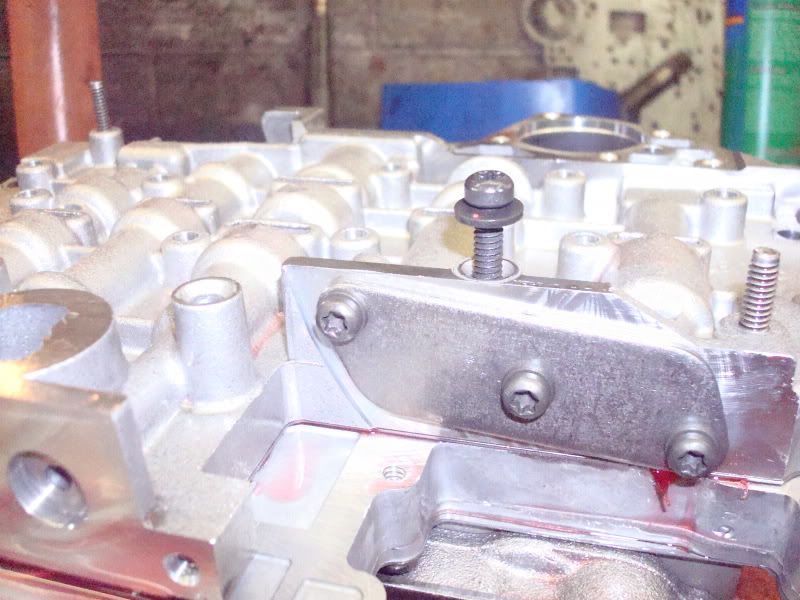

notice guide bolts (cut off filter screws)


drop channel plate over guide pins, install small check ball , I like to glue it in with a dab of assembly grease

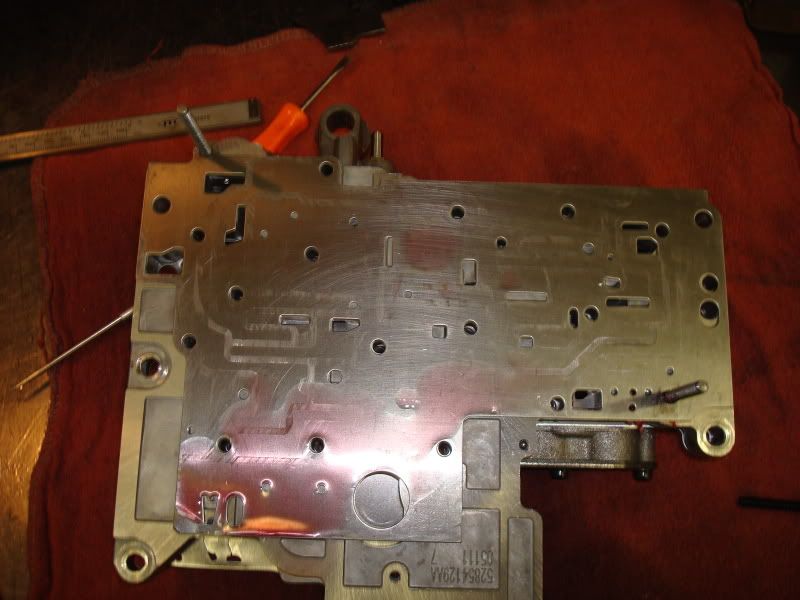

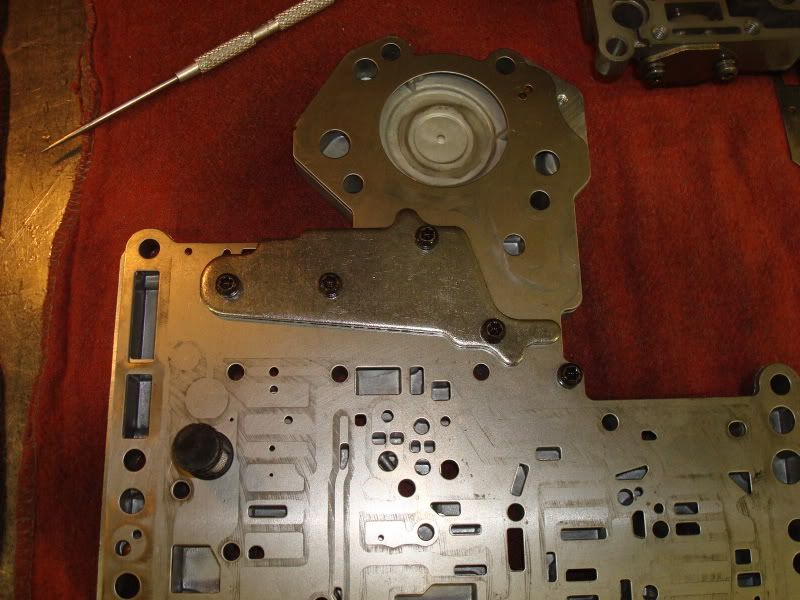

plate over guide pins

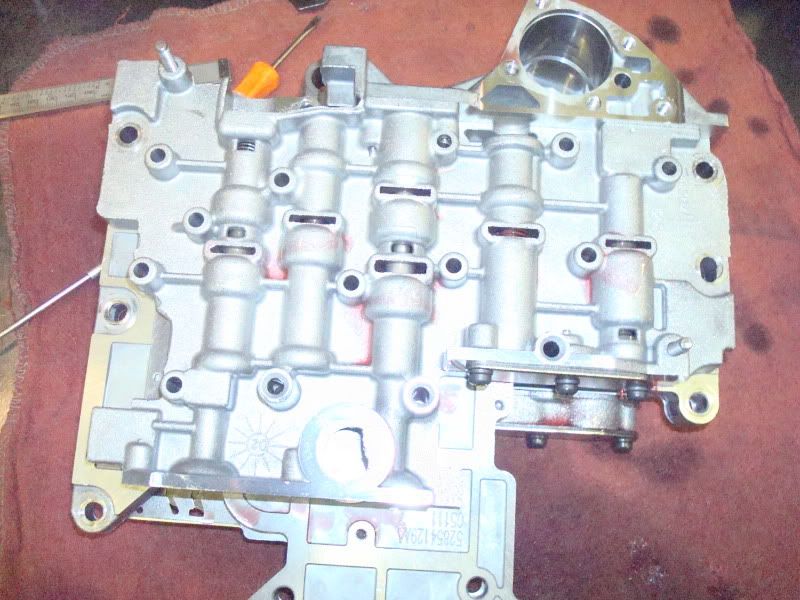

upper VB on guide pins

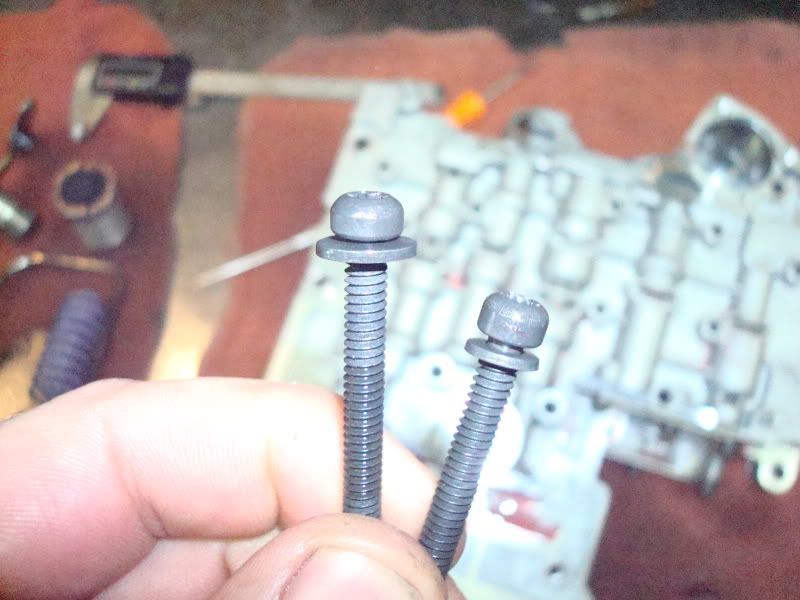

one screw has a different washer in it


goes here, reinstall the rest of the screws
BAXY is offline
post #6 of 49 (permalink) Old 10-19-2010, 07:45 PM Thread Starter
Diesel Head

Join Date: Jan 2010
Location: Sparwood,BC , Canada
Posts: 1,162
Thanks: 6
Thanked 145 Times in 82 Posts
iTrader Score: 0 reviews

4th accumulator and spring


accululator cover, boost tube upright in vise for easier assembly
BAXY is offline
post #7 of 49 (permalink) Old 10-19-2010, 07:50 PM Thread Starter
Diesel Head

Join Date: Jan 2010
Location: Sparwood,BC , Canada
Posts: 1,162
Thanks: 6
Thanked 145 Times in 82 Posts
iTrader Score: 0 reviews

tube with tabs bent over


pressure regulator valve and switch valve

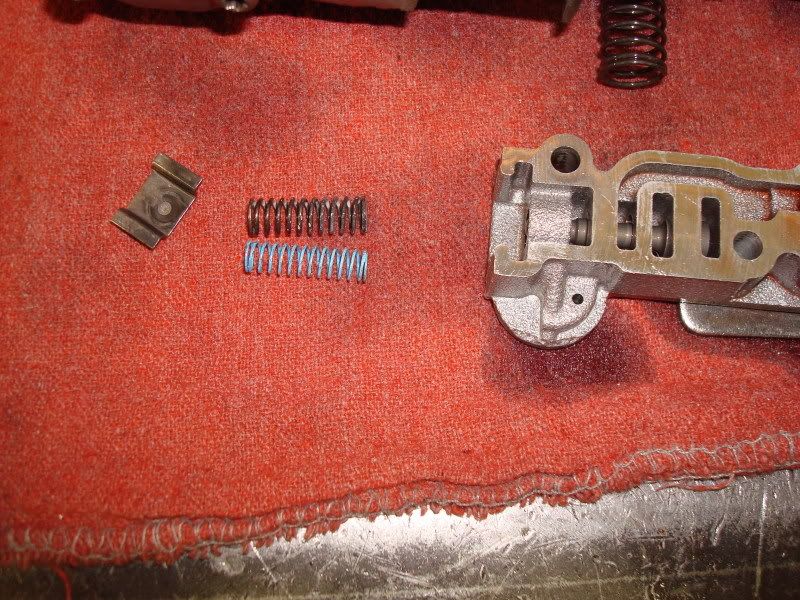

springs blue spring is from shift kit


this is pressure regulator spring retainer in the stock position

adjusted as per shift kit , the blue spring is much stiffer this adjustment is a higher line pressure than the stock setup
BAXY is offline
post #8 of 49 (permalink) Old 10-19-2010, 08:03 PM Thread Starter
Diesel Head

Join Date: Jan 2010
Location: Sparwood,BC , Canada
Posts: 1,162
Thanks: 6
Thanked 145 Times in 82 Posts
iTrader Score: 0 reviews

installed


I usually install the TV rod and rooster comb before the pressure reg but I got distracted
the manual valve was supplied in the kit


stock govenor body


modded


BW gov solenoid on right stock on left


better pic


installed see the clearance for oil to properly circulate


clip plugs in upside down with the BW solenoid so make sure the wire has slack and the connector is out of the way of the bracket


better


metal rings supplied installed on accumulator
pink spring supplied in kit , grey is stock


orfice cup plug for accululator bore


install in hole , flush with case


stick springs to accumulator helps assembly a bit



ok thats all there is to it
install the VB back into the trans , adjust bands , fresh filter and oil

POSSIBLY if you have a TV cable you mave need to make an adjustment , I have had a few where there is a bit too much TV pressure and the trans will downshift from 4th to 2nd at too high of speed and put the engine on the govenor


this kit worked AWESOME the truck had a stock converter it was crisp but not at all rude under all throttle conditions

I sell this kit in all my rebuilts usually with a single billet and superior super intermediate servo and billet band strut

I wouldn't be scared to run 100HP tune all day long with that setup
BAXY is offline
The Following User Says Thank You to BAXY For This Useful Post:
tommybee (02-25-2015)
post #9 of 49 (permalink) Old 12-10-2010, 05:23 AM
Cummins Fanatic

Bayouboy81's Avatar

Join Date: Aug 2009
Location: Zachary, LA
Posts: 160
Thanks: 5
Thanked 9 Times in 8 Posts
iTrader Score: 0 reviews
subscribing for future use.

06' 5.9L Laramie Megacab 4x4, Bullydog PMT, S&B intake, QZ Boost-fooler, Hell bent steel 2.5" leveling kit, 20" MB Motoring w/ 35x12.5x20 Mickey Thompson ATZ's. Silencer ring mia. Straight-Piped, Debadged, Roll-n-lock bedcover, Ranchhand rear bumper
To view links or images in signatures your post count must be 3 or greater. You currently have 0 posts.
Bayouboy81 is offline
post #10 of 49 (permalink) Old 12-10-2010, 09:53 AM
Diesel Head

MotorCityMadman's Avatar

Join Date: Nov 2006
Location: Manitoba, Canada
Posts: 1,922
Thanks: 99
Thanked 100 Times in 94 Posts
iTrader Score: 1 reviews
I can't find the difference in the 47re/48re vb's. I have to switch back and forth between the pictures as I can't see them on my screen at once. Can you point it out? Thanks

98 2500,4x4auto,48re vb,billet single,shift kit+, Super B, 4" ss,#10 ff,4gsk,.024s, 5x.014, BHAF,16* gauges,WVO, B164 bypass 2004.5 3500, SRW, FASS WVO, B164 bypass, [email protected] Sold 96 2500 eclb 3gsk
MotorCityMadman is offline
post #11 of 49 (permalink) Old 12-10-2010, 01:39 PM
Cummins Fan

Join Date: Oct 2009
Location: Central Alberta
Posts: 60
Thanks: 10
Thanked 1 Time in 1 Post
iTrader Score: 3 reviews
Wow! I'll try most DIY projects, but after seeing this I think I'll leave it up to the professionals.

Nice writeup though!

2012 Ram 1500 Sport...No Cummins
To view links or images in signatures your post count must be 3 or greater. You currently have 0 posts.


Sold: 2006 Ram 2500 SLT MegaCab 4x4 5.9
MegaSmoke is offline
post #12 of 49 (permalink) Old 12-10-2010, 03:10 PM
Newbie

Join Date: Sep 2009
Location: Oak Harbor, WA
Posts: 14
Thanks: 1
Thanked 1 Time in 1 Post
iTrader Score: 0 reviews
I agree with megasmoke, ive been wanting to do this among V/B, T/C (new i wasnt going to do that). How long did it take you to complete this?
