Steering damper 2WD, IFS, replacement

Someone recently posted about their steering damper which caught my attention. Mine was the original. I removed one end from it's bracket and the rod slid in and out with about as much resistance as a trombone slide. What follows does not apply to 2WD trucks with a solid front axle or 4X4s. You can get replacement dampers for them every where. Not so with mine.

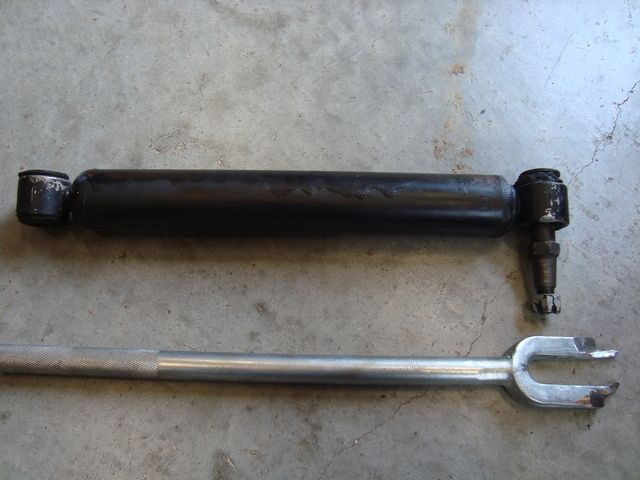

The OEM part number is 52038476. Back when they were available from Dodge they were priced above $100 each. Key word "were". And, there are no after market replacements or pictures of them on line that I could find. So, here is a picture of mine. Notice the highly modified and now mangled tie rod separator fork. It had to be modified because the tapered shaft is installed in a recessed area of the center link. It is mangle because blows from a 12 ounce hammer wouldn't budge the piece out, but several spirited blows from a 2 lb hammer did.

[IMG][/IMG]

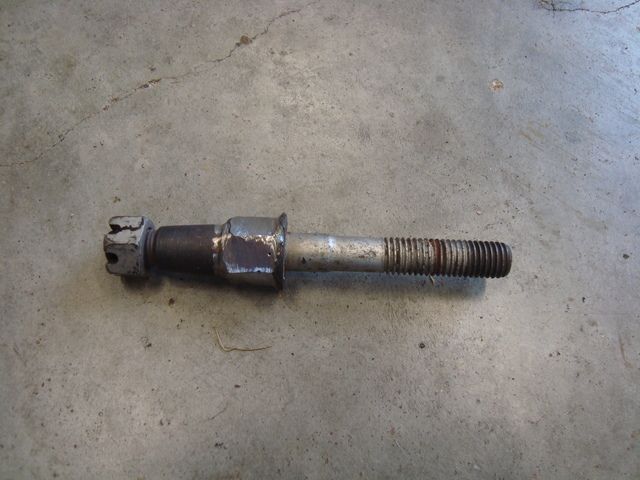

After some cutting, welding and grinding a new mounting bolt was fabricated using the tapered shaft and the OEM bolt from the other end. I used it because both the bolt and nut have shoulders, while any bolt with a flat washer under the head and a lock washer under the nut will work in the frame bracket. I bought a M12 bolt, 70mm long to go there.

[IMG][/IMG]

My choice for a replacement damper was based on retracted length and fully extended length. This is critical, not all the after market ones made to replace OEM # 52029280 I looked at were usable.

13.25 and 21 for the OEM and 13.18/21 for the KYB SS10333 More Information for KYB SS10333

End result, I now have a damper that actually dampens side to side travel, and I won't have to beat on anything the next time I replace it.

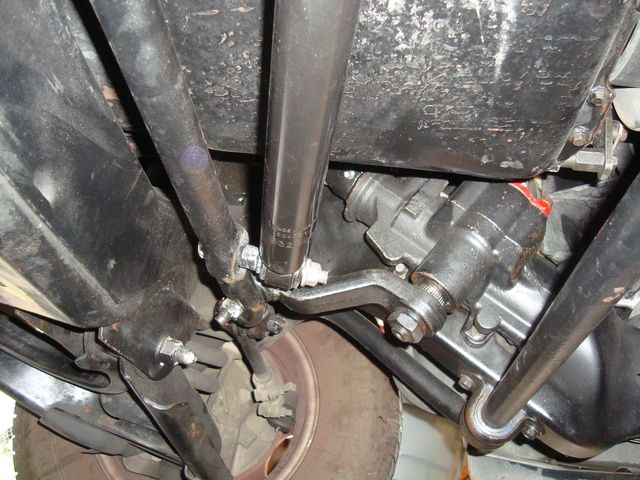

[IMG][/IMG]
