Finished My Blue Cluster Installation

I just finished my install for my BLUE GAUGE CLUSTER
Here is alil HOW TO..

1.Order the bulbs first… I order a few extra incase one break you don’t have to take everything off again and fix it.

Parts list for 03-05
11 - B8.5 bulbs in the cluster....
3 - Neo5 for HVAC
3 - neo4 bulbs in the trip meter
Roscolux #74: Night Blue - odometer/trip meter/PRND21
http://www.fullcompass.com/product/3..._campaign=trld
http://www.superbrightleds.com/cgi-b...nstrument.html
http://www.v-leds.com/Interior-LED/G...orLanding/true
2.Once you get all the bulb in get your tools ready.

A Phillips screwdriver
Needle nose pliers
Scissors
Silicone
Torx # 15 and 20

3.There are 2 screws under the dash right infront the cluster. Take them out

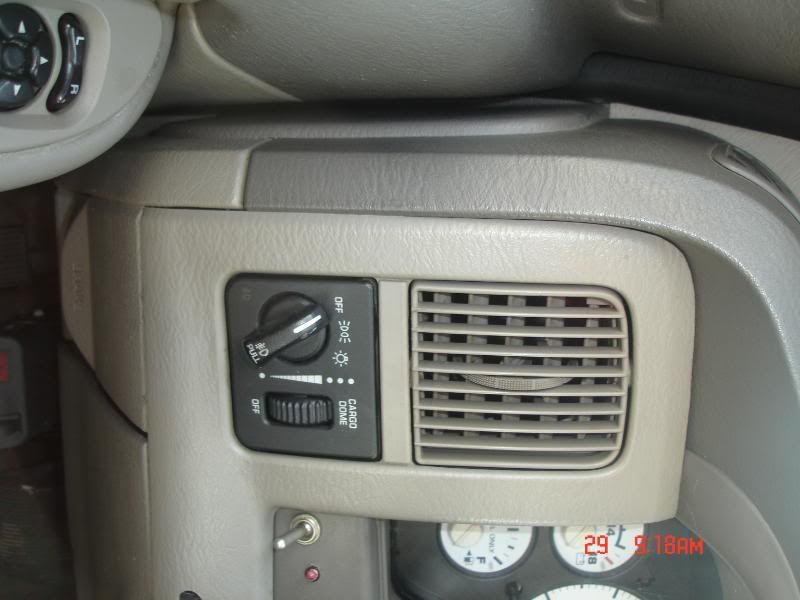

4.Now drop the bottom piece where your knees would be, and the vent piece has to be removed

5.There are 4 screws in all the corners of the cluster remove all 4 screws

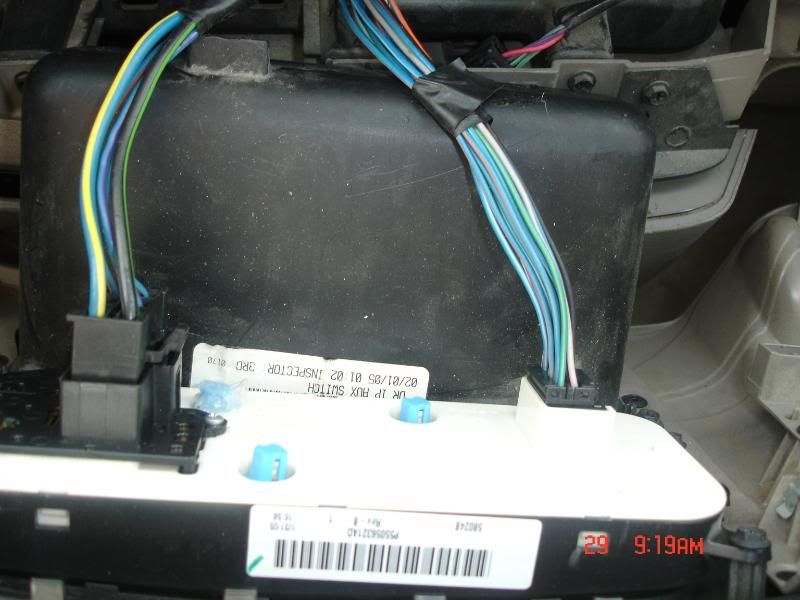

6.Pull the cluster down and reach around and unplug the 3 harnesses(they have locking clips you have to push down then pull out) now you should be able to pull the cluster out

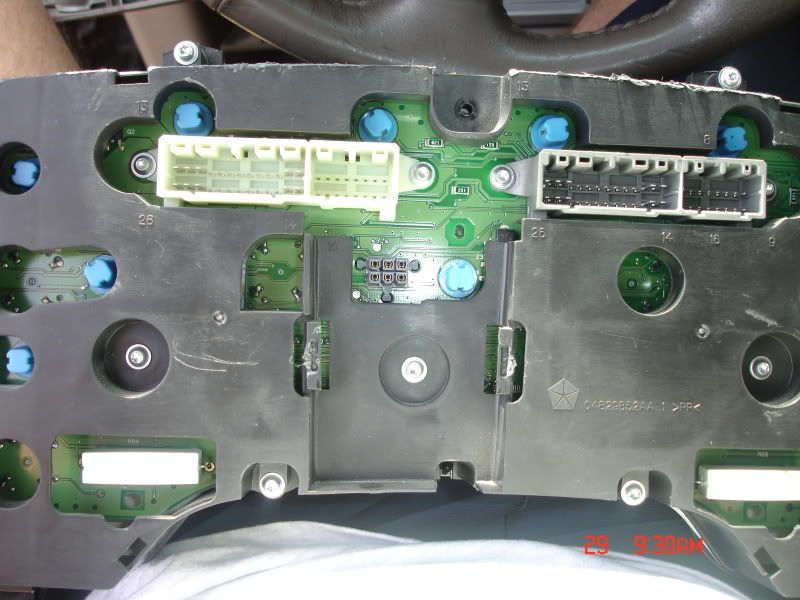

7.I replaced all the bulbs on the back, there is on under that black box in the middle( 11 total B8.5) after you put all the new bulbs in test
it bc leds are polarized (which means it only works it the pos of the led is on the pos wire, its not like a reg bulb which works both ways) if the led doesn’t work you need to flip it


8.Next I removed the front of the qauge cluster there is like 10 screws all the way around take the roscolux #74 and cut you 2 pieces just alil bigger than the square where the mileage and PRND21 and slide it under the white part.. right before u slide it dab alil silicone on the bottom of the roscolux so it stays. Test it out to make sure your roscolux cover all the green.

9.The hvac is what I did next, there is a screw under the hook on the passenger side take it out. I believe that is the only one then the middle section should pull out. Unplug the harness going to it.

10.There are 4 screws that hold the hvac controls remove them and take off the knobs, unsnap the back of the hvac(unbolt it if necessary) and the3 bulbs should be right here. Change them out with the NEO5 bulbs test it out to make sure all bulbs light up.

11.Next is the trip meter.. remove the lens for the lights(they pop out) there is a screw in each one then it pops out. Unplug the harness for the lights and the trip meter(you might have to unbolt the trip meter before you take the harness off) next take all the screws out the trip meter. And you and unsnap it. You should see the circuit card. Change out the 3 bulbs and cut you a piece of roscolux just a big as the glass.. put you some silicone on the corners test the bulbs before you put everthing back together…




I did mine without any advice first. i had a few bulb sizes, so some of what i did isnt exactly what yall gonna do. like the hvac i used the b8.5 but i had to make the bulb fit (it was tight)you will use the Neo5, and the center bulb in the LIE o METER.. i didnt have one to put but 2 works fine.
HERE ARE SOME PICS OF MINE FINISHED









2004 Silver Srt 4 Stock
To view links or images in signatures your post count must be 3 or greater. You currently have 0 posts.

2005 Black Ram 2500 5.9l 2wd Auto
2007 Blue Ram 2500 6.7l 4wd Auto

Last edited by underramarmor; 04-04-2010 at 09:40 PM.
underramarmor is offline
The Following 16 Users Say Thank You to underramarmor For This Useful Post:
03Cummins18 (08-28-2012), 401dodgediesel (02-13-2013), BitterBeard (11-29-2012), BO's_06_Cummins (02-23-2010), CrazyHorse1978 (01-07-2013), cumminscowboy05 (08-14-2013), DjWolf37 (07-23-2018), Greenhart (09-20-2012), Gunny Fitz (03-13-2015), jgage916 (12-02-2009), kirkpatrick09 (01-09-2011), kylepenfield (10-10-2012), Mykdiver (07-25-2010), Squirtis (12-17-2011), TeXaS_ReiCh (07-14-2011), The God Father (12-30-2011)
Sponsored Links
Advertisement

post #2 of 45 (permalink) Old 07-24-2009, 12:38 AM
Diesel Freak

BFD99's Avatar

Join Date: Jul 2008
Location: Tulsa, Ok
Posts: 698
Thanks: 8
Thanked 15 Times in 15 Posts
iTrader Score: 0 reviews
looks great! what all bulbs did it take ya for the people wanting to know!

New Toy: 2008 BMW 135i, 6 Speed, N54 Bi-Turbo I-6
Old Toy: 2006 2500/QC/SB/Sport/2wd 5.9 With Garmon tranny and DPC Triple Disk Converter
BFD99 is offline
post #3 of 45 (permalink) Old 07-24-2009, 12:41 AM
Rescue Tower

Shainer's Avatar

Join Date: Jul 2008
Location: Colorado
Posts: 10,827
Thanks: 683
Thanked 1,915 Times in 1,395 Posts
iTrader Score: 0 reviews
Quote:
Originally Posted by BFD99 View Post
looks great! what all bulbs did it take ya for the people wanting to know!
I've done this on a few other projects, and would like to know the detail on yours! Great work!

Custom pinstriped Power Wheel. I started out with very little... I still have most of it. Feel free to PM me anytime.
Shainer is offline
Sponsored Links
Advertisement

post #4 of 45 (permalink) Old 07-24-2009, 12:50 AM Thread Starter
TECH SPECIALIST

underramarmor's Avatar

Join Date: Sep 2008
Location: North Louisiana
Posts: 1,461
Thanks: 12
Thanked 167 Times in 80 Posts
iTrader Score: 0 reviews
i used...
11 - B8.5 bulbs in the cluster....

3 - B8.5 bulbs in the hvac(they where alil tight getting on but they worked great...should of used 3-Neo5

3 - neo4 bulbs in the trip meter

and for the odometer/trip meter/PRND12 i used Roscolux #74: Night Blue


and i covered my Edge with the Roscolux #74: Night Blue

2004 Silver Srt 4 Stock
To view links or images in signatures your post count must be 3 or greater. You currently have 0 posts.

2005 Black Ram 2500 5.9l 2wd Auto
2007 Blue Ram 2500 6.7l 4wd Auto
underramarmor is offline
The Following 5 Users Say Thank You to underramarmor For This Useful Post:
2005sltblue (10-22-2009), DjWolf37 (07-23-2018), LSV2NV (02-25-2010), styler007 (07-26-2009), youngcummins08 (07-26-2009)
post #5 of 45 (permalink) Old 07-24-2009, 12:51 AM
Rescue Tower

Shainer's Avatar

Join Date: Jul 2008
Location: Colorado
Posts: 10,827
Thanks: 683
Thanked 1,915 Times in 1,395 Posts
iTrader Score: 0 reviews
Quote:
Originally Posted by underramarmor View Post
i used...
11 - B8.5 bulbs in the cluster....

3 - B8.5 bulbs in the hvac(they where alil tight getting on but they worked great...should of used 3-Neo5

3 - neo4 bulbs in the trip meter

and for the odometer/trip meter/PRND12 i used Roscolux #74: Night Blue


and i covered my Edge with the Roscolux #74: Night Blue
Those are all LED's correct?

Custom pinstriped Power Wheel. I started out with very little... I still have most of it. Feel free to PM me anytime.
Shainer is offline
post #6 of 45 (permalink) Old 07-24-2009, 12:52 AM Thread Starter
TECH SPECIALIST

underramarmor's Avatar

Join Date: Sep 2008
Location: North Louisiana
Posts: 1,461
Thanks: 12
Thanked 167 Times in 80 Posts
iTrader Score: 0 reviews
the reason my blower moter knob isnt lite up... is bc i forgot to put it back on to take the pics

2004 Silver Srt 4 Stock
To view links or images in signatures your post count must be 3 or greater. You currently have 0 posts.

2005 Black Ram 2500 5.9l 2wd Auto
2007 Blue Ram 2500 6.7l 4wd Auto
underramarmor is offline
post #7 of 45 (permalink) Old 07-24-2009, 12:52 AM Thread Starter
TECH SPECIALIST

underramarmor's Avatar

Join Date: Sep 2008
Location: North Louisiana
Posts: 1,461
Thanks: 12
Thanked 167 Times in 80 Posts
iTrader Score: 0 reviews
Quote:
Originally Posted by Shainer View Post
Those are all LED's correct?
yes sir

here is the link

Product Listing - CAR

2004 Silver Srt 4 Stock
To view links or images in signatures your post count must be 3 or greater. You currently have 0 posts.

2005 Black Ram 2500 5.9l 2wd Auto
2007 Blue Ram 2500 6.7l 4wd Auto
underramarmor is offline
The Following 5 Users Say Thank You to underramarmor For This Useful Post:
BBRam (07-24-2009), Diesel Dummy (08-29-2009), Mykdiver (07-25-2010), northstarfire0693 (08-29-2009), Shainer (07-24-2009)
post #8 of 45 (permalink) Old 07-24-2009, 12:54 AM
Rescue Tower

Shainer's Avatar

Join Date: Jul 2008
Location: Colorado
Posts: 10,827
Thanks: 683
Thanked 1,915 Times in 1,395 Posts
iTrader Score: 0 reviews
Quote:
Originally Posted by underramarmor View Post
yes sir

here is the link

Product Listing - CAR
You da man! I like links!

Custom pinstriped Power Wheel. I started out with very little... I still have most of it. Feel free to PM me anytime.
Shainer is offline
post #9 of 45 (permalink) Old 07-24-2009, 01:00 AM Thread Starter
TECH SPECIALIST

underramarmor's Avatar

Join Date: Sep 2008
Location: North Louisiana
Posts: 1,461
Thanks: 12
Thanked 167 Times in 80 Posts
iTrader Score: 0 reviews
if u need any thing ill be out (unless where i go has 3g for my iphone) next few days email me if u need something

brandon_b_c @yahoo.com

NO space.. i put a space so u and see the underscores

2004 Silver Srt 4 Stock
To view links or images in signatures your post count must be 3 or greater. You currently have 0 posts.

2005 Black Ram 2500 5.9l 2wd Auto
2007 Blue Ram 2500 6.7l 4wd Auto
underramarmor is offline
post #10 of 45 (permalink) Old 07-24-2009, 01:02 AM Thread Starter
TECH SPECIALIST

underramarmor's Avatar

Join Date: Sep 2008
Location: North Louisiana
Posts: 1,461
Thanks: 12
Thanked 167 Times in 80 Posts
iTrader Score: 0 reviews
Quote:
Originally Posted by Shainer View Post
You da man! I like links!
NO PROB... i gather alil bits from here and there to make this kit happen....

i didnt have any one to tell me everything i needed


so that is why i posted this for all who want to do this kit on a 03-05 can have ez access

2004 Silver Srt 4 Stock
To view links or images in signatures your post count must be 3 or greater. You currently have 0 posts.

2005 Black Ram 2500 5.9l 2wd Auto
2007 Blue Ram 2500 6.7l 4wd Auto
underramarmor is offline
post #11 of 45 (permalink) Old 07-24-2009, 01:23 AM
Cummins Enthusiast

CO Cummins's Avatar

Join Date: Apr 2009
Location: Fruita, CO
Posts: 213
Thanks: 25
Thanked 16 Times in 16 Posts
iTrader Score: 0 reviews
that looks awesome man!! i've been thinking about doing this, but didn't know how many or what kind i needed. thanks for the links and all!!

2010 CCLB 3500 SRW, manual, Mini Max, 4 in TBE
2008 MC 3500 - SOLD; 2003 QCSB 3500 - SOLD; 2003 QCSB 2500 - SOLD
CO Cummins is offline
post #12 of 45 (permalink) Old 07-24-2009, 06:32 AM
Only in a HEMI

BBRam's Avatar

Join Date: Jan 2006
Location: Chelsea MI
Posts: 27,656
Thanks: 1,811
Thanked 1,515 Times in 1,055 Posts
iTrader Score: 13 reviews
I like it !!!!!!!!!!!

Thanks for the info as well.
