My Homemade Exhaust Brake

Ive been driving a Cab Forward truck for about 8 years and Ive grown to love its exhaust brake. So when I finally got my own diesel, it was a must.
My list of materials
4" pipe sch 40 $3
3/8 plate / flanges $10
3/16 plate / baffle $3
3/8 cold roll / shaft $ 2
3/8 ID 1/2 OD bronze bushings for shaft / hardware store $4
.050 copper sheet / gaskets $15
#10 stainless button head screws / bolt baffle to shaft $2
Bimba 4" stroke air cylinder / ebay $20
660 raptor clutch spring / pressure relief
Misc flat bar, sheet metal $10
7/16 bolts / for flanges
1/4 WeatherHead air fittings / 1/4 air hose x 1/4 pipe / napa $16
1/4 air hose / napa $4
2" liquid filled 100 psi gauge / to confirm back pressure $9

Electric side of it:
ARB air compressor / its an older one I had spare $50
Mac air solenoid / for actuation / ebay $25
Sintered Air muffler $3
Micro switch / for throttle pedal / radio shack $4
12v switch / waytek $5
12v relays / 2 $8
16ga wire / lots $16
wiring connectors / lots $5
heat shrink / HF $2

So I didnt cover every piece, but you get the idea.

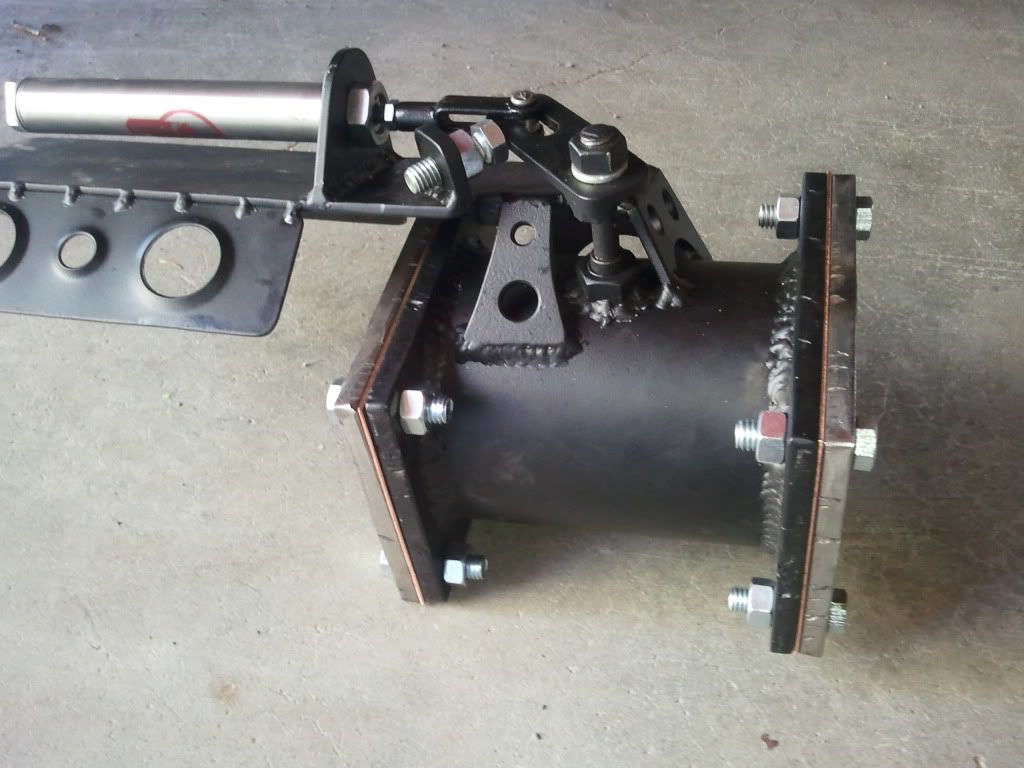

Here it is completed. To follow will be the build
I put the air cylinder on the down stream side, hoping it will see less heat.

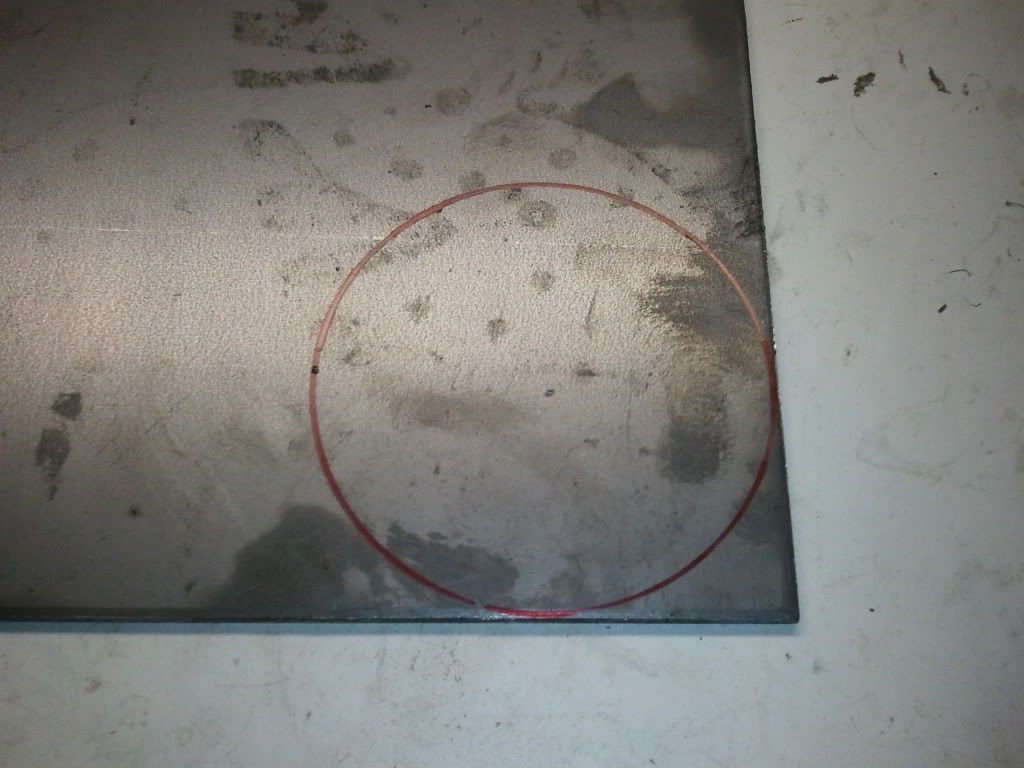

My starting materials and marked baffle

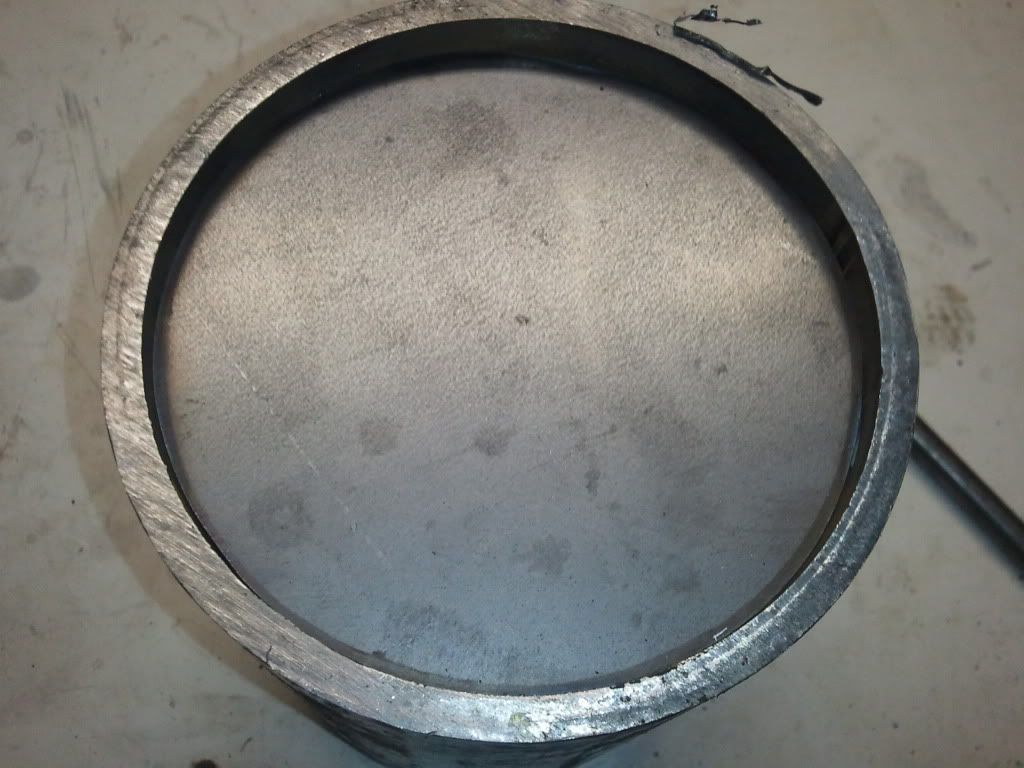

Baffle cut and fit, finished on belt sander.

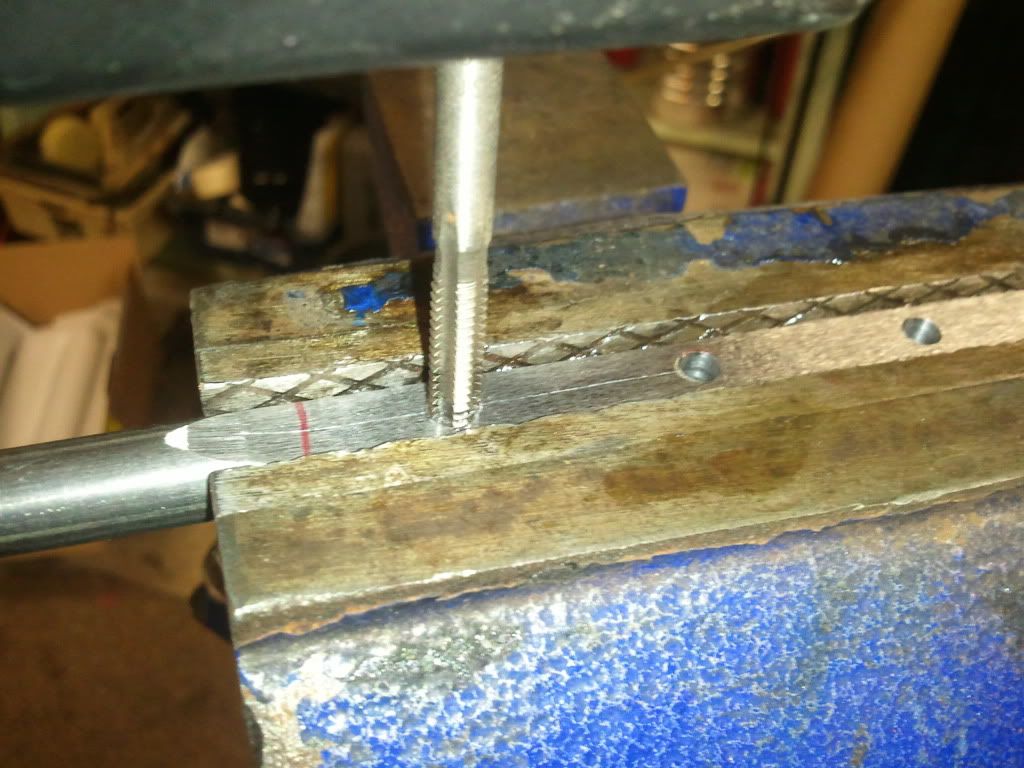

Flat sided the shaft and drilled/ tapped the holes

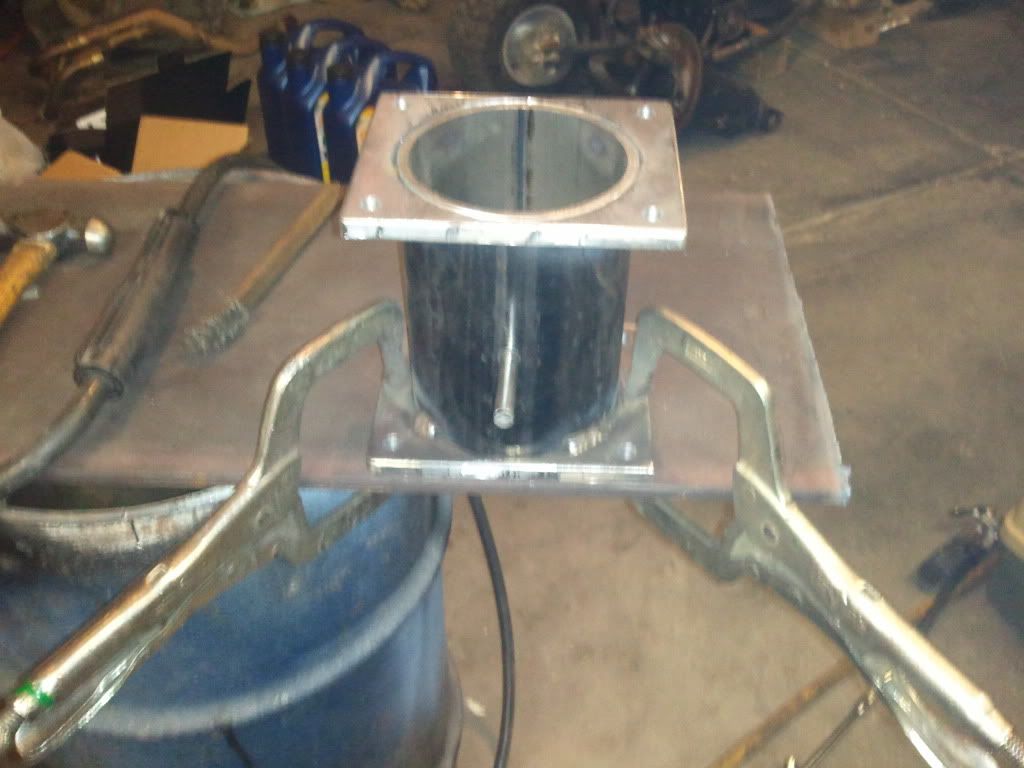

Torched the flanges and welded them on. Clamped to try to keepem flat

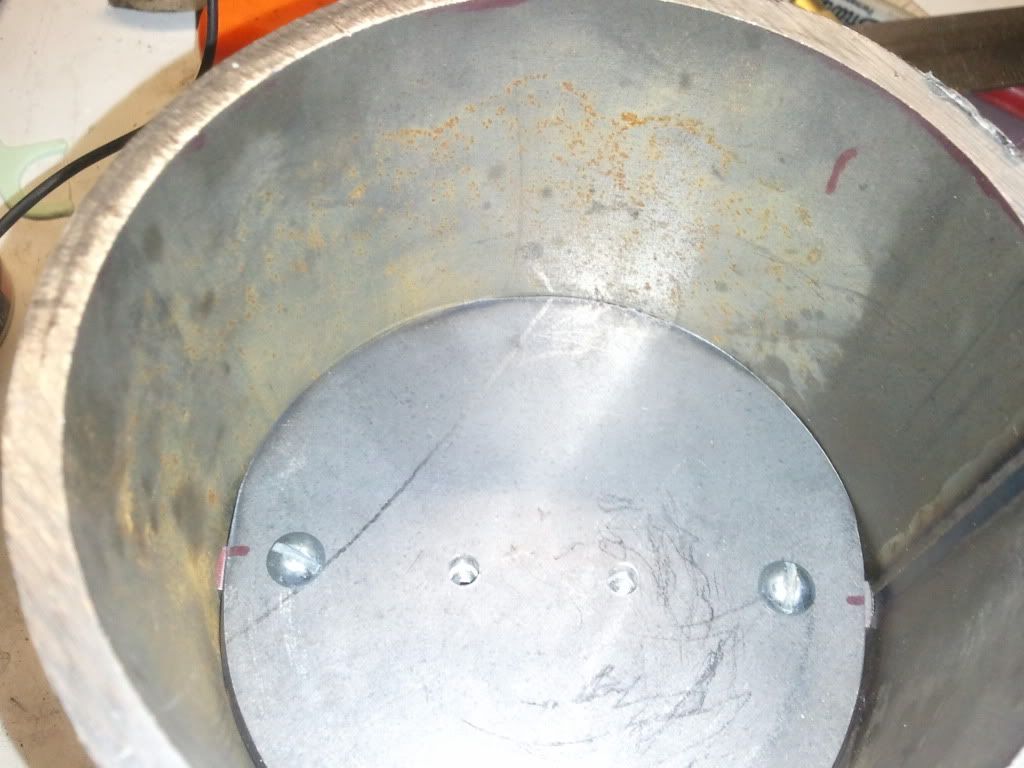

Baffle installed

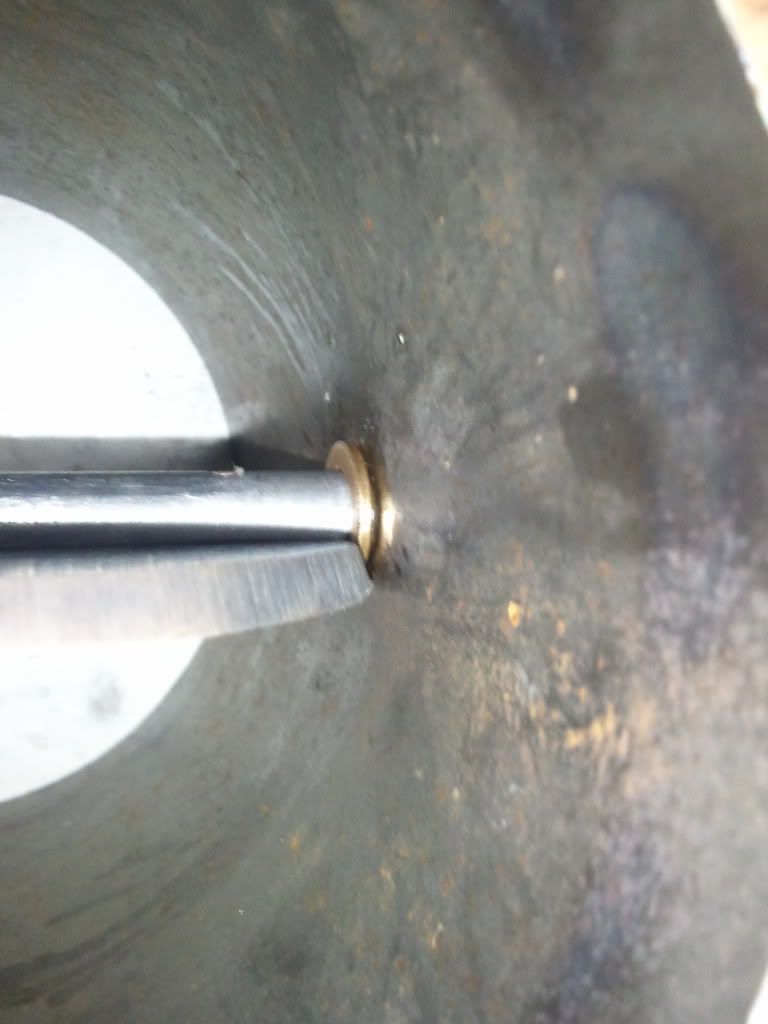

Pulled baffle and bushed the shaft.

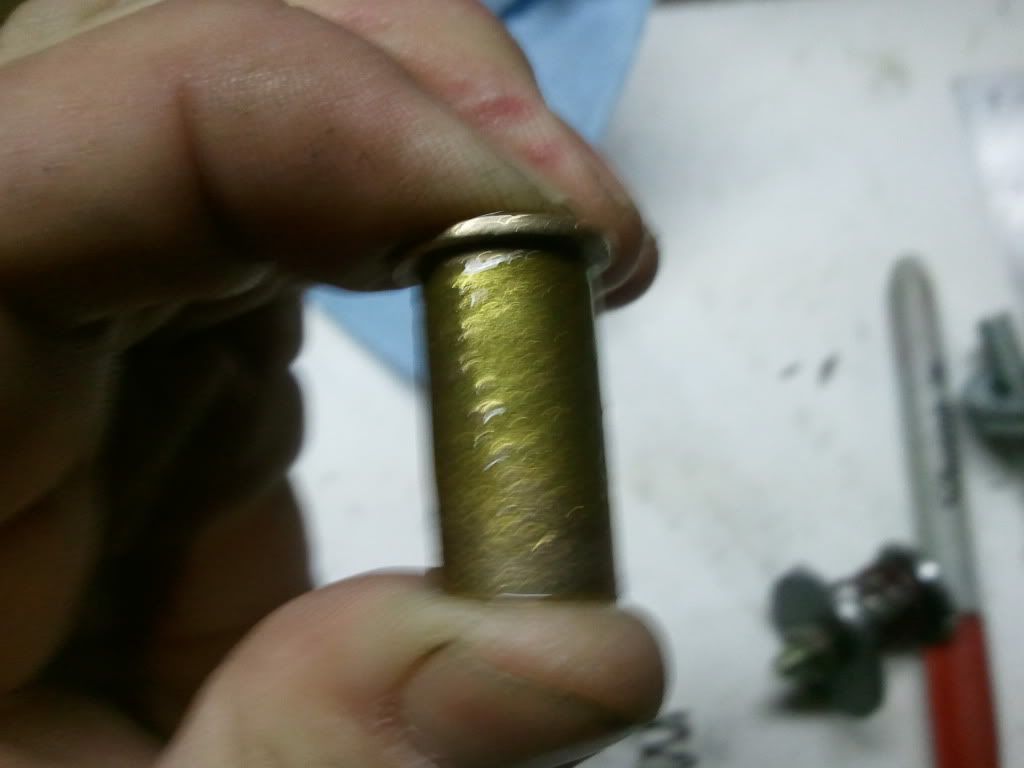

This shows the proper way to lube a bronze bushing.Place your finger under opening, fill with oil, cap with other finger and apply pressure. The oil will seep through the sides and permeate it with oil.

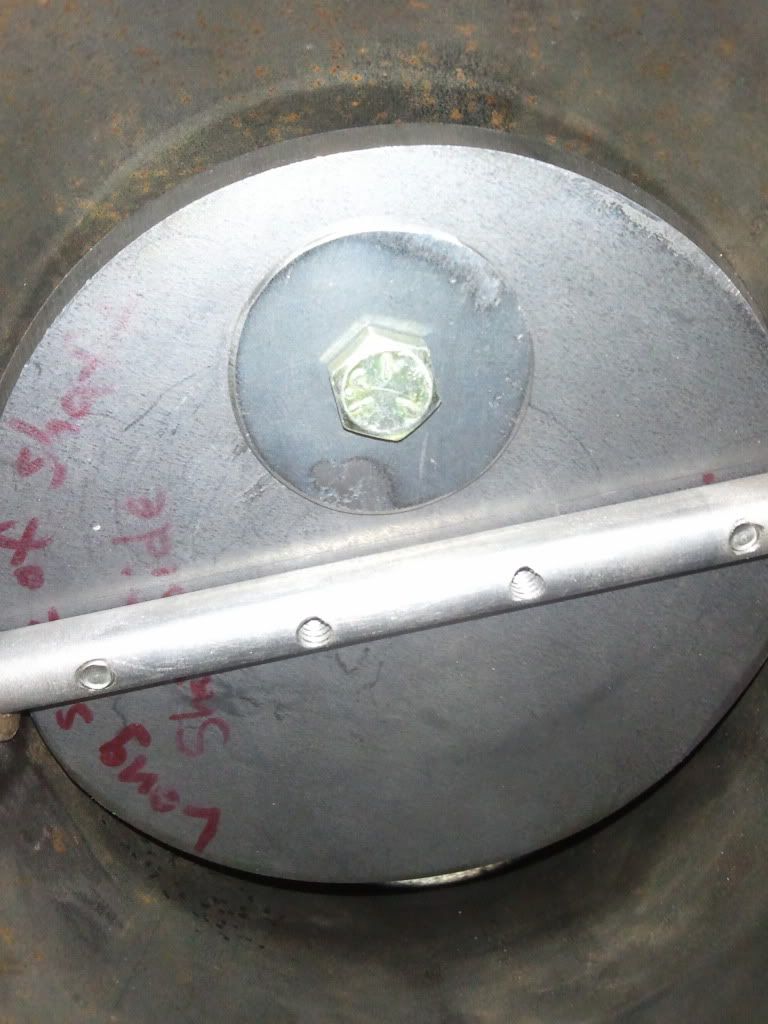

I designed a pressure relief valve with a series of holes sealed by a small metal disc(hole saw leftovers),Seated by a spring. I experimented with the springs by building a small air chamber, with a relief hole covered by the disc, I varied pressure against the spring with my hydraulic press to find a acceptable pressure.



Then a mount for the air cylinder




whitefire2.0 likes this.

TOYOTA ROCK CRAWLER BUILD 95' X-cab 4.3 Vortec, duals, SAS, CUSTOMhttp://www.pirate4x4.com/forum/showthread.php?t=657455
2005 2500 Laramie QCSB, S&B Intake, Exhaust,Smarty S-06POD, ATX wheels.DODGE PIC

Last edited by 44newman; 05-14-2012 at 01:30 AM.
44newman is offline
The Following 4 Users Say Thank You to 44newman For This Useful Post:
AA BEN (10-25-2012), AKCumminsBadger (09-01-2013), hdkawi (02-21-2016), Justin225 (05-23-2012), meRockboost (05-14-2012)
Sponsored Links
Advertisement

post #2 of 114 (permalink) Old 05-13-2012, 11:58 PM Thread Starter
Cummins Enthusiast

44newman's Avatar

Join Date: Dec 2011
Location: eastern OR
Posts: 245
Thanks: 3
Thanked 35 Times in 22 Posts
iTrader Score: 0 reviews
And the lever



Some finishing touches, Weld. Then Powder Coat/ thanks to Harbor Freight


Had some copper laying around, so I gaskets with it.



Install Pics
Wiring was done using the ECM bypass Mech wiring instructions published by PAC Brake.










Thanks for looking

TOYOTA ROCK CRAWLER BUILD 95' X-cab 4.3 Vortec, duals, SAS, CUSTOMhttp://www.pirate4x4.com/forum/showthread.php?t=657455
2005 2500 Laramie QCSB, S&B Intake, Exhaust,Smarty S-06POD, ATX wheels.DODGE PIC
44newman is offline
The Following 6 Users Say Thank You to 44newman For This Useful Post:
12valvedriver (05-19-2014), AKCumminsBadger (09-01-2013), chovanl (07-29-2013), hdkawi (02-21-2016), Last 5.9 (01-23-2014), prototype427 (05-31-2014), silverbullet63 (01-17-2013)
post #3 of 114 (permalink) Old 05-14-2012, 12:30 AM
Cummins Enthusiast

b1mmuo27's Avatar

Join Date: Feb 2011
Location: Waterford, Ontario
Posts: 234
Thanks: 5
Thanked 5 Times in 5 Posts
iTrader Score: 0 reviews
What do do think it cost you material wise?

2003 Quad cab, long box, dually 4 x4 Cummins 5.9 HO Auto 48RE B & W flip ball gooseneck hitch, Samrty Junior.
b1mmuo27 is offline
Sponsored Links
Advertisement

post #4 of 114 (permalink) Old 05-14-2012, 01:44 AM Thread Starter
Cummins Enthusiast

44newman's Avatar

Join Date: Dec 2011
Location: eastern OR
Posts: 245
Thanks: 3
Thanked 35 Times in 22 Posts
iTrader Score: 0 reviews
Quote:
Originally Posted by b1mmuo27 View Post
What do do think it cost you material wise?
I added some prices to most the materials.

It totals $216

Now thats not counting a few nuts and bolts , and a few of those things I bought a while back so they might be a little more expensive now.
Most my steel was bought a couple months ago, I buy it as rems for $0.50/lb
And I found the ARB compressor on craigslist for $50/ Steal.
And not counting consumables or elec, ect. Which wasnt much.
I spent couple evenings after work building the brake, an hour or two at a time.
Then a pretty full day wiring. And about a 1/2 day mounting the brake, air lines, and valve.

TOYOTA ROCK CRAWLER BUILD 95' X-cab 4.3 Vortec, duals, SAS, CUSTOMhttp://www.pirate4x4.com/forum/showthread.php?t=657455
2005 2500 Laramie QCSB, S&B Intake, Exhaust,Smarty S-06POD, ATX wheels.DODGE PIC
44newman is offline
post #5 of 114 (permalink) Old 05-14-2012, 02:11 AM
Diesel Head

Join Date: Oct 2010
Posts: 2,654
Thanks: 151
Thanked 411 Times in 351 Posts
iTrader Score: 15 reviews
NICE job!!!
It's alwyas great to see that level DIY fabrication AND ingenuity.
I particularly like the back pressure valve design.
If you wanted to, I have no doubt that you could give PacBrake a run for their money...LOL.

Gonna post a link to this onto TDR if that's OK.
seafish is offline
post #6 of 114 (permalink) Old 05-14-2012, 02:25 AM
Cummins Fan

Klickster102's Avatar

Join Date: Jan 2011
Location: Las Vegas, NV
Posts: 53
Thanks: 11
Thanked 2 Times in 2 Posts
iTrader Score: 0 reviews
Thats awesome! how is she out on the road? and how close to the turbo is it mounted(looks lik its next to the transfer case, does the distance affect it)?

2006 Dodge 5.9 Cummins Bighorn, K&N intake and filter, 5" exhaust, 2" leveling kit, isspro gauges, blacked out headlights

Last edited by Klickster102; 05-14-2012 at 02:27 AM.
Klickster102 is offline
post #7 of 114 (permalink) Old 05-14-2012, 02:32 AM
Cummins Fanatic

Dekman's Avatar

Join Date: Nov 2010
Location: Agassiz BC
Posts: 112
Thanks: 2
Thanked 22 Times in 16 Posts
iTrader Score: 0 reviews
This is badass , nice work.
Dekman is offline
post #8 of 114 (permalink) Old 05-14-2012, 03:02 AM
Diesel Head

Twistedcummins's Avatar

Join Date: Aug 2010
Location: Gilbert, Az
Posts: 1,672
Thanks: 1,433
Thanked 298 Times in 239 Posts
iTrader Score: 0 reviews
Wow!! Extremely creative! How effective is it compared to a big name eb? Makes me wanna go build one right now! Definitely gonna keep this thread in mind for later down the road.


Sent from my iPhone using Tapatalk

99 QCSB 4x4 auto/Edge/Airdog/Isspro

Quote:
Originally Posted by USARMY12V View Post
With a 47RE it's impossible to tell. It's easier diagnosing what's wrong with a woman.
Twistedcummins is offline
post #9 of 114 (permalink) Old 05-14-2012, 03:38 AM
▀▀▀▀▀▀▀▀▀▀

sawdustmaker's Avatar

Join Date: Aug 2011
Location: Clemson SC
Posts: 1,623
Thanks: 358
Thanked 332 Times in 226 Posts
iTrader Score: 1 reviews
Awesome, I've been collecting parts to build one myself. I'm also curious how well this works braking wise. How much pressure doe it build up?

Yes i can reach the beer fridge from here
sawdustmaker is offline
post #10 of 114 (permalink) Old 05-14-2012, 11:24 AM
Diesel Freak

Join Date: Jan 2007
Location: Kingston Wa
Posts: 650
Thanks: 33
Thanked 70 Times in 59 Posts
iTrader Score: 0 reviews
Leave it to a Pirate to show everyone up on the Fab work. Nice job. One finger salute.

04.5 CC SB 4x4, Low stall converter, billet input, intermediate, and valve body mods. HPT tuned by Firepunk, FASS 165 Titanium, BMS 50 injectors. Mechanical fan conversion with OEM plastic fan blades, Traction bars.
jballou is offline
The Following User Says Thank You to jballou For This Useful Post:
sawdustmaker (05-14-2012), shadow-cw (09-08-2013)
post #11 of 114 (permalink) Old 05-14-2012, 02:32 PM
Cummins Enthusiast

JWChadwick's Avatar

Join Date: Mar 2009
Location: TEXAS, Republic of (I Wish)
Posts: 260
Thanks: 34
Thanked 20 Times in 16 Posts
iTrader Score: 0 reviews
Pretty awesome. Really like it. I am curious if it is set up to be fully closed at 90* in the pipe or at 67.5* with a bevel grind? Hard to see, just curious if soot hang up will be an issue. Really nice work, Real nice.

2008 3/4 QCSB AUTO SMARTY, 5" , ARP 425, air bags, MP8
2006 3500 mega SRW G56. Smarty Jr., 4" Cat back, 4" lift
JWChadwick is offline
post #12 of 114 (permalink) Old 05-14-2012, 09:54 PM
Diesel Head

papaduck's Avatar

Join Date: Oct 2007
Location: NW Arkansas
Posts: 1,339
Thanks: 6
Thanked 177 Times in 157 Posts
iTrader Score: 0 reviews
Very nice.

Now if I just had a welder.

03 Dodge 3500 SLT, HO, 6 spd, 4x4, SRW, quad cab, gauge on lift pump-boost-EGT-engine oil pressure and rail pressure, FASS 95, water seperator and 2m filter, steering box brace, 6.7L fluid damper
papaduck is offline
The Following User Says Thank You to papaduck For This Useful Post:
knobturner (05-15-2012)
