6.7 Cummins, H&S, & Timing

I posted some info on a thread. But figured I'd just post it all up here.

Ok first.

07.5-09 3rd Gen

Here is how your duration and timing tables are arranged within MCC.



You'll notice that you have 4 settings for duration maps and 9 for timing maps. Duration Maps are no power, mild, wild, hot. 6 EOM timing maps and mild, wild, and hot.

EOM timing maps are engine operating maps. So at different elevations (Mainly) your ecm will use these to adjust the timing. Can be a very useful tool or can all be set to the same.

Biggest thing to notice is that you have a seperate timing map for each different duration map. This is the only way to have different duration maps and actually use them correctly.

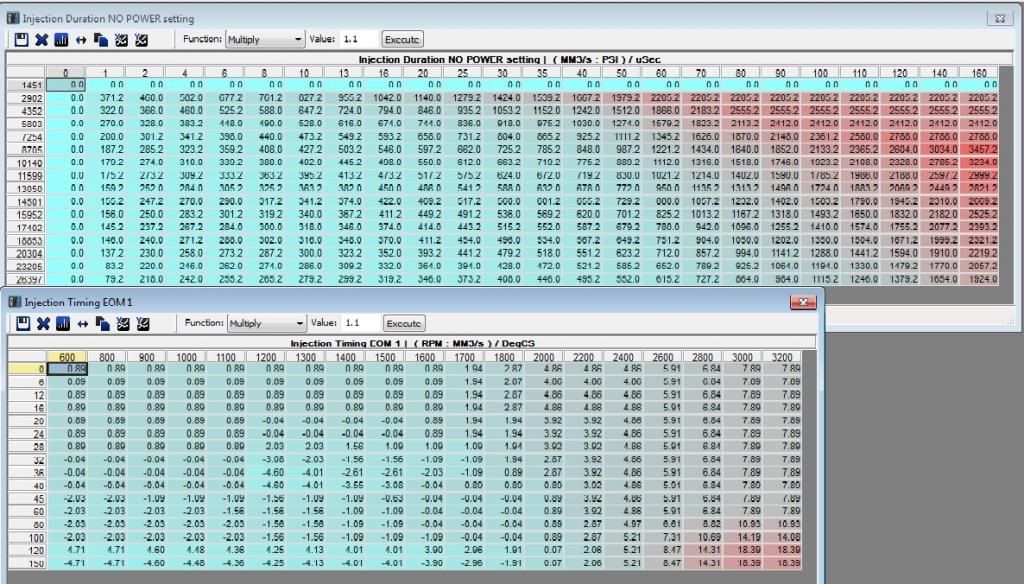

Now here is the stock tuning both with respect to duration and timing.

Here's the same truck in efi-


So you can see your stock values. If your curious as to what values are in there now, export a tune via mcc (you don't need the unlock to export and play, only to load it in there). Just make sure you select the same settings you did when you loaded H&S on the last time. So if you select default everything, do the same thing. If you want to see what the next level get's you, go in and export another tune. Just make sure you've saved the first one off the sd card before exporting another one. It uses the same name for the file every time and thus will write over your previous export.

Now on to you 4th gen guys..

Here's the same pictures but with a 2012:

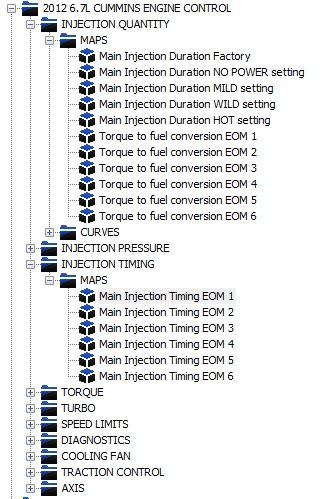

This is your grouping and shows where you only have the EOM timing maps, not the the mild,wild, & hot maps like with the cm2100 controller (07.5-09 6.7)

Here's your stock values for duration and timing


1st. your going to notice that duration isn't measured in micro seconds anymore. Its measured in mili seconds. No big deal. Just a different unit of measurement.

You can also export out the same way and look at your tuning using the mcc export. Once again this doesn't require the unlock. Just update it and export it out and look at what your actually running..

Here's the no power setting with the default timing selected for a 2012 truck..


Notice how on the factory tuning it is asking for 1.9ms with 17* of timing, now your asking for 1.5ms with 23* of timing..

To give you an example:

At 2800 rpms, 18* of timing & 2.0ms of duration, your commanding roughly 51% btdc & 49% atdc. At 2800 rpms, 23* of timing and 1.5ms of duration your commanding 70% btdc & 30% atdc.

My general rule of thumb is 48% btdc for mileage, 52% btdc For performance. Keep going above 52% and your getting more and more aggressive. There's no way I would build a tune with more than 55-56% btdc on anything but a highly modified purpose built rig and the customers expressed approval and request.

I hope this helps a little bit. I realize that I opened Pandora's box with this stuff. But I just didn't want you guys running around on level 3 or higher timing and thinking you were good to go on the no power setting. I'm not saying this is going to kill your hg. I'm telling you that your playing with fire and sooner or later its probably going to happen.

Do with it what you want. I just wanted to post somethings up about it.

Thanks
Dave
__________________
EFI/MCC Tuning Sale
Custom EFI & MCC Tuning
Custom Transmission Tuning

MILITARY DISCOUNT: We support our troops
Dave- 806-223-9472 Shoot us an email and join the Draconian Team
davematthews is offline   Quick reply to this message
The Following 15 Users Say Thank You to davematthews For This Useful Post:
6.7L RCLB (10-09-2012), 63boxtop (10-09-2012), BadOmen (10-07-2012), djcheez (10-10-2012), FAIPmafia (05-07-2014), firedude (10-07-2012), LaMoparPower (10-10-2012), Lightemup923 (10-15-2012), lsucowboy (11-27-2012), plumber mike (10-07-2012), powerstroke8994 (10-09-2012), PRSKILLER (10-11-2012), Soddy (10-08-2012), TOOLMAN (12-05-2012), UPANDCUMMER (10-07-2012)
Sponsored Links
Advertisement

Old 10-07-2012, 01:02 PM   #2 (permalink)
Diesel Head

UPANDCUMMER's Avatar

Join Date: Dec 2011
Location: South West Pennsylvania
Posts: 1,995
Thanks: 394
Thanked 281 Times in 237 Posts
iTrader Score: 0 reviews
Thanks for the info.
__________________
12 RAM 3500 Mega Laramie Mineral Gray, 4x4 SRW Thuren, TGC, Daystar, Backwoods deluxe pre-runner , Smittybilt x20 12k ,Cobra 29LX 102" whip & Breedlove mount, BakFlip/Rak/Box, Amp Research, Bully Rings, Retro Solutions, Front & Rear cam, Quick grill kit, , Tint, KC Hilites Daylighter 233 & 634, pwr gate lock, husky liner, Gauges, ARP, S&B CAI, tube & wrap , IronCross, PSC, 4" Pipe, Mini-Maxx w/pyro, MCC, OD & Inmotion , Mag-hytec, Shibby plugs, GDP breather & dipstick holders, 180 T-stat, H&S intake horn & 4" boost tube, LF9028, Amsoil Bypass system, MOFO 15, Infinity Kapa series.AMSOIL, +, I think I have a problem ...
UPANDCUMMER is offline   Quick reply to this message
Old 10-07-2012, 01:11 PM   #3 (permalink)
Cummins Fanatic

Akmike's Avatar

Join Date: Mar 2012
Location: Anchorage,Alaska
Posts: 117
Thanks: 0
Thanked 9 Times in 9 Posts
iTrader Score: 0 reviews
What about running around with no timing or default. And on wild.
__________________
2012 Laramie crew cab. h&s mini max, transmission tune, 5 inch ss turbo back, s&b cold air intake.
Akmike is offline   Quick reply to this message
Old 10-07-2012, 01:16 PM   #4 (permalink)
Draconian Diesel

davematthews's Avatar

Join Date: Dec 2010
Location: Amarillo, Texas
Posts: 5,778
Thanks: 1,221
Thanked 1,985 Times in 1,151 Posts
iTrader Score: 7 reviews
Too little timing is being inefficent. To much is too aggressive. There's a fine line where you need to be.
__________________
EFI/MCC Tuning Sale
Custom EFI & MCC Tuning
Custom Transmission Tuning

MILITARY DISCOUNT: We support our troops
Dave- 806-223-9472 Shoot us an email and join the Draconian Team
davematthews is offline   Quick reply to this message
The Following User Says Thank You to davematthews For This Useful Post:
TOOLMAN (12-05-2012)
Old 10-07-2012, 02:26 PM   #5 (permalink)
Cummins Fanatic

AngryBeaver's Avatar

Join Date: Aug 2012
Location: Tejas
Posts: 184
Thanks: 12
Thanked 28 Times in 21 Posts
iTrader Score: 0 reviews
So in english I get the fine line as being, timing on 3 or default tune on a minimun of wild or better operating temps up to normal including towing and easy on the skinny sound bout right?
__________________
2011 3500 Drw 4x4 Longhorn, 5" Tbe,Mini Maxx W O/D, MCC By Dave Matthews,Hids,All led inside,Frontier front bumper,285/70/17 Toyo AT 2,Leveled, B & W, Bad Arse Truck
AngryBeaver is offline   Quick reply to this message
Old 10-07-2012, 02:38 PM   #6 (permalink)
Draconian Diesel

davematthews's Avatar

Join Date: Dec 2010
Location: Amarillo, Texas
Posts: 5,778
Thanks: 1,221
Thanked 1,985 Times in 1,151 Posts
iTrader Score: 7 reviews
Quote:
Originally Posted by AngryBeaver View Post
So in english I get the fine line as being, timing on 3 or default tune on a minimun of wild or better operating temps up to normal including towing and easy on the skinny sound bout right?
Yup.

I would say: level 2 for mild, level 3 for wild, and level 4 for hot if you can actually fuel enough for hot.

That atleast gets you close.
__________________
EFI/MCC Tuning Sale
Custom EFI & MCC Tuning
Custom Transmission Tuning

MILITARY DISCOUNT: We support our troops
Dave- 806-223-9472 Shoot us an email and join the Draconian Team
davematthews is offline   Quick reply to this message
The Following 5 Users Say Thank You to davematthews For This Useful Post:
6.7L RCLB (10-09-2012), croakersmoker21 (10-08-2012), lilchoppchopp (10-09-2012), TOOLMAN (12-05-2012), travishaas88 (12-13-2012)
Old 10-07-2012, 02:48 PM   #7 (permalink)
Cummins Fanatic

AngryBeaver's Avatar

Join Date: Aug 2012
Location: Tejas
Posts: 184
Thanks: 12
Thanked 28 Times in 21 Posts
iTrader Score: 0 reviews
Should be doing studs next then I want to get with you about mcc tuning.Whats the best way to talk to you about some info on pricing and such, call pm?

AB
__________________
2011 3500 Drw 4x4 Longhorn, 5" Tbe,Mini Maxx W O/D, MCC By Dave Matthews,Hids,All led inside,Frontier front bumper,285/70/17 Toyo AT 2,Leveled, B & W, Bad Arse Truck
AngryBeaver is offline   Quick reply to this message
Old 10-08-2012, 11:16 AM   #8 (permalink)
Diesel Freak

kwhite's Avatar

Join Date: Apr 2007
Location: SW Oklahoma
Posts: 703
Thanks: 102
Thanked 116 Times in 76 Posts
iTrader Score: 0 reviews
Thanks for posting this Dave. Very good info.
__________________
2010 MC Laramie 68 Auto 2500 4x4, HBS, ARP, Bilsteins, Toyos, Mini, OD, Shibby TVD, MCC by Me, ICOM & Kenwood

Last edited by kwhite; 10-08-2012 at 11:25 AM.
kwhite is offline   Quick reply to this message
Old 10-08-2012, 12:43 PM   #9 (permalink)
Cummins Fanatic

Join Date: Aug 2010
Posts: 176
Thanks: 14
Thanked 44 Times in 28 Posts
iTrader Score: 0 reviews
So what would ultimately be the "fix" for this? A custom mcc tune from you? I run an xrt pro so I'm SOL. can we expect to ever have mcc supported?

All I want is a safe no power tune lol
__________________
2012 Reg cab 3500 dually 2wd
I <3 Smoke is offline   Quick reply to this message
Old 10-08-2012, 01:12 PM   #10 (permalink)
Cummins Fanatic

Join Date: Aug 2012
Posts: 131
Thanks: 31
Thanked 23 Times in 20 Posts
iTrader Score: 0 reviews
Exactly

Sent from my DROID RAZR using Tapatalk 2

Last edited by Matt65; 08-31-2013 at 10:07 PM.
Matt65 is offline   Quick reply to this message
Old 10-08-2012, 05:17 PM   #11 (permalink)
Diesel Freak

firedude's Avatar

Join Date: Jul 2010
Location: AZ
Posts: 894
Thanks: 50
Thanked 180 Times in 137 Posts
iTrader Score: 3 reviews
Thanks again for the help Davematthews. I feel like one of us( it can be me) needs to start a thread warning people about this. I know there are many out there running on no power and thinking they are fine. I was.
__________________
2010 Inferno Red CrewCab, 3.73 gears. Pure Performance lift with Thuren 6" coils. 20x9 Badlands. 37" Nitto's. H&S XRT with Draconian Diesel Tuning, BOD wastegate. AMP steps, GDP intake.

Last edited by firedude; 10-09-2012 at 05:07 PM.
firedude is offline   Quick reply to this message
The Following User Says Thank You to firedude For This Useful Post:
RWH (10-08-2012)
Old 10-08-2012, 05:30 PM   #12 (permalink)
Cummins Fanatic

Join Date: Aug 2012
Posts: 131
Thanks: 31
Thanked 23 Times in 20 Posts
iTrader Score: 0 reviews
Interesting discussion

Sent from my DROID RAZR using Tapatalk 2
